suews_util_minpack.f95 File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	chkder (m, n, x, fvec, fjac, ldfjac, xp, fvecp, mode, err)
subroutine	dogleg (n, r, lr, diag, qtb, delta, x)
real(kind=8) function	enorm (n, x)
real(kind=8) function	enorm2 (n, x)
subroutine	fdjac1 (fcn, n, x, fvec, fjac, ldfjac, iflag, ml, mu, epsfcn, m, prms)
subroutine	fdjac2 (fcn, m, n, x, xdat, ydat, fvec, fjac, ldfjac, iflag, epsfcn)
subroutine	hybrd (fcn, n, x, fvec, xtol, maxfev, ml, mu, epsfcn, diag, mode, factor, nprint, info, nfev, fjac, ldfjac, r, lr, qtf, m, prms)
subroutine	hybrd1 (fcn, n, x, fvec, tol, info, m, prms)
subroutine	hybrj (fcn, n, x, fvec, fjac, ldfjac, xtol, maxfev, diag, mode, factor, nprint, info, nfev, njev, r, lr, qtf)
subroutine	hybrj1 (fcn, n, x, fvec, fjac, ldfjac, tol, info)
subroutine	lmder (fcn, m, n, x, fvec, fjac, ldfjac, ftol, xtol, gtol, maxfev, diag, mode, factor, nprint, info, nfev, njev, ipvt, qtf)
subroutine	lmder1 (fcn, m, n, x, fvec, fjac, ldfjac, tol, info)
subroutine	lmdif (fcn, m, n, x, xdat, ydat, fvec, ftol, xtol, gtol, maxfev, epsfcn, diag, mode, factor, nprint, info, nfev, fjac, ldfjac, ipvt, qtf)
subroutine	lmdif1 (fcn, m, n, x, xdat, ydat, fvec, tol, info)
subroutine	lmpar (n, r, ldr, ipvt, diag, qtb, delta, par, x, sdiag)
subroutine	lmstr (fcn, m, n, x, fvec, fjac, ldfjac, ftol, xtol, gtol, maxfev, diag, mode, factor, nprint, info, nfev, njev, ipvt, qtf)
subroutine	lmstr1 (fcn, m, n, x, fvec, fjac, ldfjac, tol, info)
subroutine	qform (m, n, q, ldq)
subroutine	qrfac (m, n, a, lda, pivot, ipvt, lipvt, rdiag, acnorm)
subroutine	qrsolv (n, r, ldr, ipvt, diag, qtb, x, sdiag)
subroutine	r1mpyq (m, n, a, lda, v, w)
subroutine	r1updt (m, n, s, ls, u, v, w, sing)
subroutine	r8vec_print (n, a, title)
subroutine	rwupdt (n, r, ldr, w, b, alpha, c, s)
subroutine	timestamp ()

Function/Subroutine Documentation

chkder()

subroutine chkder	(	integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(m)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		real(kind=8), dimension(n)	xp,
		real(kind=8), dimension(m)	fvecp,
		integer(kind=4)	mode,
		real(kind=8), dimension(m)	err
	)

Definition at line 2 of file suews_util_minpack.f95.

!*****************************************************************************80
!
!! CHKDER checks the gradients of M functions of N variables.
!
!  Discussion:
!
!    CHKDER checks the gradients of M nonlinear functions in N variables,
!    evaluated at a point X, for consistency with the functions themselves.
!
!    The user calls CHKDER twice, first with MODE = 1 and then with MODE = 2.
!
!    MODE = 1.
!      On input,
!        X contains the point of evaluation.
!      On output,
!        XP is set to a neighboring point.
!
!    Now the user must evaluate the function and gradients at X, and the
!    function at XP.  Then the subroutine is called again:
!
!    MODE = 2.
!      On input,
!        FVEC contains the function values at X,
!        FJAC contains the function gradients at X.
!        FVECP contains the functions evaluated at XP.
!      On output,
!        ERR contains measures of correctness of the respective gradients.
!
!    The subroutine does not perform reliably if cancellation or
!    rounding errors cause a severe loss of significance in the
!    evaluation of a function.  Therefore, none of the components
!    of X should be unusually small (in particular, zero) or any
!    other value which may cause loss of significance.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) M, is the number of functions.
!
!    Input, integer ( kind = 4 ) N, is the number of variables.
!
!    Input, real ( kind = 8 ) X(N), the point at which the jacobian is to be
!    evaluated.
!
!    Input, real ( kind = 8 ) FVEC(M), is used only when MODE = 2.
!    In that case, it should contain the function values at X.
!
!    Input, real ( kind = 8 ) FJAC(LDFJAC,N), an M by N array.  When MODE = 2,
!    FJAC(I,J) should contain the value of dF(I)/dX(J).
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of FJAC.
!    LDFJAC must be at least M.
!
!    Output, real ( kind = 8 ) XP(N), on output with MODE = 1, is a neighboring
!    point of X, at which the function is to be evaluated.
!
!    Input, real ( kind = 8 ) FVECP(M), on input with MODE = 2, is the function
!    value at XP.
!
!    Input, integer ( kind = 4 ) MODE, should be set to 1 on the first call, and
!    2 on the second.
!
!    Output, real ( kind = 8 ) ERR(M).  On output when MODE = 2, ERR contains
!    measures of correctness of the respective gradients.  If there is no
!    severe loss of significance, then if ERR(I):
!      = 1.0D+00, the I-th gradient is correct,
!      = 0.0D+00, the I-th gradient is incorrect.
!      > 0.5D+00, the I-th gradient is probably correct.
!      < 0.5D+00, the I-th gradient is probably incorrect.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) eps
   real(kind=8) epsf
   real(kind=8) epslog
   real(kind=8) epsmch
   real(kind=8) err(m)
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fvec(m)
   real(kind=8) fvecp(m)
   integer(kind=4) i
   integer(kind=4) j
   integer(kind=4) mode
   real(kind=8) temp
   real(kind=8) x(n)
   real(kind=8) xp(n)

   epsmch = epsilon(epsmch)
   eps = sqrt(epsmch)
!
!  MODE = 1.
!
   if (mode == 1) then

      do j = 1, n
         temp = eps*abs(x(j))
         if (temp == 0.0d+00) then
            temp = eps
         end if
         xp(j) = x(j) + temp
      end do
!
!  MODE = 2.
!
   else if (mode == 2) then

      epsf = 100.0d+00*epsmch
      epslog = log10(eps)

      err = 0.0d+00

      do j = 1, n
         temp = abs(x(j))
         if (temp == 0.0d+00) then
            temp = 1.0d+00
         end if
         err(1:m) = err(1:m) + temp*fjac(1:m, j)
      end do

      do i = 1, m

         temp = 1.0d+00

         if (fvec(i) /= 0.0d+00 .and. fvecp(i) /= 0.0d+00 .and. &
             abs(fvecp(i) - fvec(i)) >= epsf*abs(fvec(i))) then
            temp = eps*abs((fvecp(i) - fvec(i))/eps - err(i)) &
                   /(abs(fvec(i)) + abs(fvecp(i)))
         end if

         err(i) = 1.0d+00

         if (epsmch < temp .and. temp < eps) then
            err(i) = (log10(temp) - epslog)/epslog
         end if

         if (eps <= temp) then
            err(i) = 0.0d+00
         end if

      end do

   end if

   return

dogleg()

subroutine dogleg	(	integer(kind=4)	n,
		real(kind=8), dimension(lr)	r,
		integer(kind=4)	lr,
		real(kind=8), dimension(n)	diag,
		real(kind=8), dimension(n)	qtb,
		real(kind=8)	delta,
		real(kind=8), dimension(n)	x
	)

Definition at line 172 of file suews_util_minpack.f95.

Referenced by hybrd(), and hybrj().

!*****************************************************************************80
!
!! DOGLEG finds the minimizing combination of Gauss-Newton and gradient steps.
!
!  Discussion:
!
!    Given an M by N matrix A, an N by N nonsingular diagonal
!    matrix D, an M-vector B, and a positive number DELTA, the
!    problem is to determine the convex combination X of the
!    Gauss-Newton and scaled gradient directions that minimizes
!    (A*X - B) in the least squares sense, subject to the
!    restriction that the euclidean norm of D*X be at most DELTA.
!
!    This subroutine completes the solution of the problem
!    if it is provided with the necessary information from the
!    QR factorization of A.  That is, if A = Q*R, where Q has
!    orthogonal columns and R is an upper triangular matrix,
!    then DOGLEG expects the full upper triangle of R and
!    the first N components of Q'*B.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) N, the order of the matrix R.
!
!    Input, real ( kind = 8 ) R(LR), the upper triangular matrix R stored
!    by rows.
!
!    Input, integer ( kind = 4 ) LR, the size of the R array, which must be
!    no less than (N*(N+1))/2.
!
!    Input, real ( kind = 8 ) DIAG(N), the diagonal elements of the matrix D.
!
!    Input, real ( kind = 8 ) QTB(N), the first N elements of the vector Q'* B.
!
!    Input, real ( kind = 8 ) DELTA, is a positive upper bound on the
!    euclidean norm of D*X(1:N).
!
!    Output, real ( kind = 8 ) X(N), the desired convex combination of the
!    Gauss-Newton direction and the scaled gradient direction.
!
   implicit none

   integer(kind=4) lr
   integer(kind=4) n

   real(kind=8) alpha
   real(kind=8) bnorm
   real(kind=8) delta
   real(kind=8) diag(n)
   real(kind=8) enorm
   real(kind=8) epsmch
   real(kind=8) gnorm
   integer(kind=4) i
   integer(kind=4) j
   integer(kind=4) jj
   integer(kind=4) k
   integer(kind=4) l
   real(kind=8) qnorm
   real(kind=8) qtb(n)
   real(kind=8) r(lr)
   real(kind=8) sgnorm
   real(kind=8) sum2
   real(kind=8) temp
   real(kind=8) wa1(n)
   real(kind=8) wa2(n)
   real(kind=8) x(n)

   epsmch = epsilon(epsmch)
!
!  Calculate the Gauss-Newton direction.
!
   jj = (n*(n + 1))/2 + 1

   do k = 1, n

      j = n - k + 1
      jj = jj - k
      l = jj + 1
      sum2 = 0.0d+00

      do i = j + 1, n
         sum2 = sum2 + r(l)*x(i)
         l = l + 1
      end do

      temp = r(jj)

      if (temp == 0.0d+00) then

         l = j
         do i = 1, j
            temp = max(temp, abs(r(l)))
            l = l + n - i
         end do

         if (temp == 0.0d+00) then
            temp = epsmch
         else
            temp = epsmch*temp
         end if

      end if

      x(j) = (qtb(j) - sum2)/temp

   end do
!
!  Test whether the Gauss-Newton direction is acceptable.
!
   wa1(1:n) = 0.0d+00
   wa2(1:n) = diag(1:n)*x(1:n)
   qnorm = enorm(n, wa2)

   if (qnorm <= delta) then
      return
   end if
!
!  The Gauss-Newton direction is not acceptable.
!  Calculate the scaled gradient direction.
!
   l = 1
   do j = 1, n
      temp = qtb(j)
      do i = j, n
         wa1(i) = wa1(i) + r(l)*temp
         l = l + 1
      end do
      wa1(j) = wa1(j)/diag(j)
   end do
!
!  Calculate the norm of the scaled gradient.
!  Test for the special case in which the scaled gradient is zero.
!
   gnorm = enorm(n, wa1)
   sgnorm = 0.0d+00
   alpha = delta/qnorm

   if (gnorm /= 0.0d+00) then
!
!  Calculate the point along the scaled gradient which minimizes the quadratic.
!
      wa1(1:n) = (wa1(1:n)/gnorm)/diag(1:n)

      l = 1
      do j = 1, n
         sum2 = 0.0d+00
         do i = j, n
            sum2 = sum2 + r(l)*wa1(i)
            l = l + 1
         end do
         wa2(j) = sum2
      end do

      temp = enorm(n, wa2)
      sgnorm = (gnorm/temp)/temp
!
!  Test whether the scaled gradient direction is acceptable.
!
      alpha = 0.0d+00
!
!  The scaled gradient direction is not acceptable.
!  Calculate the point along the dogleg at which the quadratic is minimized.
!
      if (sgnorm < delta) then

         bnorm = enorm(n, qtb)
         temp = (bnorm/gnorm)*(bnorm/qnorm)*(sgnorm/delta)
         temp = temp - (delta/qnorm)*(sgnorm/delta)**2 &
                + sqrt((temp - (delta/qnorm))**2 &
                       + (1.0d+00 - (delta/qnorm)**2) &
                       *(1.0d+00 - (sgnorm/delta)**2))

         alpha = ((delta/qnorm)*(1.0d+00 - (sgnorm/delta)**2)) &
                 /temp

      end if

   end if
!
!  Form appropriate convex combination of the Gauss-Newton
!  direction and the scaled gradient direction.
!
   temp = (1.0d+00 - alpha)*min(sgnorm, delta)

   x(1:n) = temp*wa1(1:n) + alpha*x(1:n)

   return

Here is the caller graph for this function:

enorm()

real(kind=8) function enorm	(	integer(kind=4)	n,
		real(kind=8), dimension(n)	x
	)

Definition at line 382 of file suews_util_minpack.f95.

!*****************************************************************************80
!
!! ENORM computes the Euclidean norm of a vector.
!
!  Discussion:
!
!    This is an extremely simplified version of the original ENORM
!    routine, which has been renamed to "ENORM2".
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) N, is the length of the vector.
!
!    Input, real ( kind = 8 ) X(N), the vector whose norm is desired.
!
!    Output, real ( kind = 8 ) ENORM, the Euclidean norm of the vector.
!
   implicit none

   integer(kind=4) n
   real(kind=8) x(n)
   real(kind=8) enorm

   enorm = sqrt(sum(x(1:n)**2))

   return

enorm2()

real(kind=8) function enorm2	(	integer(kind=4)	n,
		real(kind=8), dimension(n)	x
	)

Definition at line 431 of file suews_util_minpack.f95.

!*****************************************************************************80
!
!! ENORM2 computes the Euclidean norm of a vector.
!
!  Discussion:
!
!    This routine was named ENORM.  It has been renamed "ENORM2",
!    and a simplified routine has been substituted.
!
!    The Euclidean norm is computed by accumulating the sum of
!    squares in three different sums.  The sums of squares for the
!    small and large components are scaled so that no overflows
!    occur.  Non-destructive underflows are permitted.  Underflows
!    and overflows do not occur in the computation of the unscaled
!    sum of squares for the intermediate components.
!
!    The definitions of small, intermediate and large components
!    depend on two constants, RDWARF and RGIANT.  The main
!    restrictions on these constants are that RDWARF^2 not
!    underflow and RGIANT^2 not overflow.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1
!    Argonne National Laboratory,
!    Argonne, Illinois.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) N, is the length of the vector.
!
!    Input, real ( kind = 8 ) X(N), the vector whose norm is desired.
!
!    Output, real ( kind = 8 ) ENORM2, the Euclidean norm of the vector.
!
   implicit none

   integer(kind=4) n

   real(kind=8) agiant
   real(kind=8) enorm2
   integer(kind=4) i
   real(kind=8) rdwarf
   real(kind=8) rgiant
   real(kind=8) s1
   real(kind=8) s2
   real(kind=8) s3
   real(kind=8) x(n)
   real(kind=8) xabs
   real(kind=8) x1max
   real(kind=8) x3max

   rdwarf = sqrt(tiny(rdwarf))
   rgiant = sqrt(huge(rgiant))

   s1 = 0.0d+00
   s2 = 0.0d+00
   s3 = 0.0d+00
   x1max = 0.0d+00
   x3max = 0.0d+00
   agiant = rgiant/real(n, kind=8)

   do i = 1, n

      xabs = abs(x(i))

      if (xabs <= rdwarf) then

         if (x3max < xabs) then
            s3 = 1.0d+00 + s3*(x3max/xabs)**2
            x3max = xabs
         else if (xabs /= 0.0d+00) then
            s3 = s3 + (xabs/x3max)**2
         end if

      else if (agiant <= xabs) then

         if (x1max < xabs) then
            s1 = 1.0d+00 + s1*(x1max/xabs)**2
            x1max = xabs
         else
            s1 = s1 + (xabs/x1max)**2
         end if

      else

         s2 = s2 + xabs**2

      end if

   end do
!
!  Calculation of norm.
!
   if (s1 /= 0.0d+00) then

      enorm2 = x1max*sqrt(s1 + (s2/x1max)/x1max)

   else if (s2 /= 0.0d+00) then

      if (x3max <= s2) then
         enorm2 = sqrt(s2*(1.0d+00 + (x3max/s2)*(x3max*s3)))
      else
         enorm2 = sqrt(x3max*((s2/x3max) + (x3max*s3)))
      end if

   else

      enorm2 = x3max*sqrt(s3)

   end if

   return

fdjac1()

subroutine fdjac1	(	external	fcn,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(n)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		integer(kind=4)	iflag,
		integer(kind=4)	ml,
		integer(kind=4)	mu,
		real(kind=8)	epsfcn,
		integer(kind=4)	m,
		real(kind=8), dimension(m)	prms
	)

Definition at line 561 of file suews_util_minpack.f95.

Referenced by hybrd().

!*****************************************************************************80
!
!! FDJAC1 estimates an N by N jacobian matrix using forward differences.
!
!  Discussion:
!
!    This subroutine computes a forward-difference approximation
!    to the N by N jacobian matrix associated with a specified
!    problem of N functions in N variables. If the jacobian has
!    a banded form, then function evaluations are saved by only
!    approximating the nonzero terms.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!    30 Aug 2017: added `prms` to pass Parameters for constructing `FCN`
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions.  The routine should have the form:
!      subroutine fcn ( n, x, fvec, iflag )
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fvec(n)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) N, the number of functions and variables.
!
!    Input, real ( kind = 8 ) X(N), the point where the jacobian is evaluated.
!
!    Input, real ( kind = 8 ) FVEC(N), the functions evaluated at X.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), the N by N approximate
!    jacobian matrix.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of FJAC, which
!    must not be less than N.
!
!    Output, integer ( kind = 4 ) IFLAG, is an error flag returned by FCN.
!    If FCN returns a nonzero value of IFLAG, then this routine returns
!    immediately to the calling program, with the value of IFLAG.
!
!    Input, integer ( kind = 4 ) ML, MU, specify the number of subdiagonals and
!    superdiagonals within the band of the jacobian matrix.  If the
!    jacobian is not banded, set ML and MU to N-1.
!
!    Input, real ( kind = 8 ) EPSFCN, is used in determining a suitable step
!    length for the forward-difference approximation.  This approximation
!    assumes that the relative errors in the functions are of the order of
!    EPSFCN.  If EPSFCN is less than the machine precision, it is assumed that
!    the relative errors in the functions are of the order of the machine
!    precision.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) n
   integer(kind=4) m

   real(kind=8) eps
   real(kind=8) epsfcn
   real(kind=8) epsmch
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fvec(n)
   real(kind=8) h
   integer(kind=4) i
   integer(kind=4) iflag
   integer(kind=4) j
   integer(kind=4) k
   integer(kind=4) ml
   integer(kind=4) msum
   integer(kind=4) mu
   real(kind=8) temp
   real(kind=8) wa1(n)
   real(kind=8) wa2(n)
   real(kind=8) x(n)
   real(kind=8) prms(m)

   epsmch = epsilon(epsmch)

   eps = sqrt(max(epsfcn, epsmch))
   msum = ml + mu + 1
!
!  Computation of dense approximate jacobian.
!
   if (n <= msum) then

      do j = 1, n

         temp = x(j)
         h = eps*abs(temp)
         if (h == 0.0d+00) then
            h = eps
         end if

         iflag = 1
         x(j) = temp + h
         call fcn(n, x, wa1, iflag, m, prms)

         if (iflag < 0) then
            exit
         end if

         x(j) = temp
         fjac(1:n, j) = (wa1(1:n) - fvec(1:n))/h

      end do

   else
!
!  Computation of banded approximate jacobian.
!
      do k = 1, msum

         do j = k, n, msum
            wa2(j) = x(j)
            h = eps*abs(wa2(j))
            if (h == 0.0d+00) then
               h = eps
            end if
            x(j) = wa2(j) + h
         end do

         iflag = 1
         call fcn(n, x, wa1, iflag, m, prms)

         if (iflag < 0) then
            exit
         end if

         do j = k, n, msum

            x(j) = wa2(j)

            h = eps*abs(wa2(j))
            if (h == 0.0d+00) then
               h = eps
            end if

            fjac(1:n, j) = 0.0d+00

            do i = 1, n
               if (j - mu <= i .and. i <= j + ml) then
                  fjac(i, j) = (wa1(i) - fvec(i))/h
               end if
            end do

         end do

      end do

   end if

   return

Here is the caller graph for this function:

fdjac2()

subroutine fdjac2	(	external	fcn,
		integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(m)	xdat,
		real(kind=8), dimension(m)	ydat,
		real(kind=8), dimension(m)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		integer(kind=4)	iflag,
		real(kind=8)	epsfcn
	)

Definition at line 741 of file suews_util_minpack.f95.

Referenced by lmdif().

!*****************************************************************************80
!
!! FDJAC2 estimates an M by N jacobian matrix using forward differences.
!
!  Discussion:
!
!    This subroutine computes a forward-difference approximation
!    to the M by N jacobian matrix associated with a specified
!    problem of M functions in N variables.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions.  The routine should have the form:
!      subroutine fcn ( m, n, x, xdat, ydat, fvec, iflag ) ! xdat/ydat added for AnOHM, TS 20 Jul 2017
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fvec(m)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) M, is the number of functions.
!
!    Input, integer ( kind = 4 ) N, is the number of variables.
!    N must not exceed M.
!
!    Input, real ( kind = 8 ) X(N), the point where the jacobian is evaluated.
!
!    Input, real ( kind = 8 ) FVEC(M), the functions evaluated at X.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), the M by N approximate
!    jacobian matrix.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of FJAC,
!    which must not be less than M.
!
!    Output, integer ( kind = 4 ) IFLAG, is an error flag returned by FCN.
!    If FCN returns a nonzero value of IFLAG, then this routine returns
!    immediately to the calling program, with the value of IFLAG.
!
!    Input, real ( kind = 8 ) EPSFCN, is used in determining a suitable
!    step length for the forward-difference approximation.  This approximation
!    assumes that the relative errors in the functions are of the order of
!    EPSFCN.  If EPSFCN is less than the machine precision, it is assumed that
!    the relative errors in the functions are of the order of the machine
!    precision.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) eps
   real(kind=8) epsfcn
   real(kind=8) epsmch
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fvec(m), xdat(m), ydat(m)
   real(kind=8) h
   ! integer ( kind = 4 ) i
   integer(kind=4) iflag
   integer(kind=4) j
   real(kind=8) temp
   real(kind=8) wa(m)
   real(kind=8) x(n)

   epsmch = epsilon(epsmch)

   eps = sqrt(max(epsfcn, epsmch))

   do j = 1, n

      temp = x(j)
      h = eps*abs(temp)
      if (h == 0.0d+00) then
         h = eps
      end if

      iflag = 1
      x(j) = temp + h
      call fcn(m, n, x, xdat, ydat, wa, iflag)

      if (iflag < 0) then
         exit
      end if

      x(j) = temp
      fjac(1:m, j) = (wa(1:m) - fvec(1:m))/h

   end do

   return

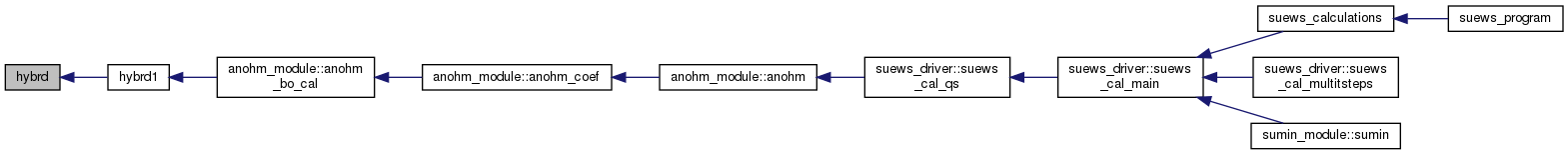

Here is the caller graph for this function:

hybrd()

subroutine hybrd	(	external	fcn,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(n)	fvec,
		real(kind=8)	xtol,
		integer(kind=4)	maxfev,
		integer(kind=4)	ml,
		integer(kind=4)	mu,
		real(kind=8)	epsfcn,
		real(kind=8), dimension(n)	diag,
		integer(kind=4)	mode,
		real(kind=8)	factor,
		integer(kind=4)	nprint,
		integer(kind=4)	info,
		integer(kind=4)	nfev,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		real(kind=8), dimension(lr)	r,
		integer(kind=4)	lr,
		real(kind=8), dimension(n)	qtf,
		integer(kind=4)	m,
		real(kind=8), dimension(m)	prms
	)

Definition at line 864 of file suews_util_minpack.f95.

References dogleg(), fdjac1(), qform(), qrfac(), r1mpyq(), and r1updt().

Referenced by hybrd1().

!*****************************************************************************80
!
!! HYBRD seeks a zero of N nonlinear equations in N variables.
!
!  Discussion:
!
!    HYBRD finds a zero of a system of N nonlinear functions in N variables
!    by a modification of the Powell hybrid method.  The user must provide a
!    subroutine which calculates the functions.  The jacobian is
!    then calculated by a forward-difference approximation.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions.  The routine should have the form:
!      subroutine fcn ( n, x, fvec, iflag )
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fvec(n)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) N, the number of functions and variables.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.
!
!    Output, real ( kind = 8 ) FVEC(N), the functions evaluated at the output X.
!
!    Input, real ( kind = 8 ) XTOL.  Termination occurs when the relative error
!    between two consecutive iterates is at most XTOL.  XTOL should be
!    nonnegative.
!
!    Input, integer ( kind = 4 ) MAXFEV.  Termination occurs when the number of
!    calls to FCN is at least MAXFEV by the end of an iteration.
!
!    Input, integer ( kind = 4 ) ML, MU, specify the number of subdiagonals and
!    superdiagonals within the band of the jacobian matrix.  If the jacobian
!    is not banded, set ML and MU to at least n - 1.
!
!    Input, real ( kind = 8 ) EPSFCN, is used in determining a suitable step
!    length for the forward-difference approximation.  This approximation
!    assumes that the relative errors in the functions are of the order of
!    EPSFCN.  If EPSFCN is less than the machine precision, it is assumed that
!    the relative errors in the functions are of the order of the machine
!    precision.
!
!    Input/output, real ( kind = 8 ) DIAG(N).  If MODE = 1, then DIAG is set
!    internally.  If MODE = 2, then DIAG must contain positive entries that
!    serve as multiplicative scale factors for the variables.
!
!    Input, integer ( kind = 4 ) MODE, scaling option.
!    1, variables will be scaled internally.
!    2, scaling is specified by the input DIAG vector.
!
!    Input, real ( kind = 8 ) FACTOR, determines the initial step bound.  This
!    bound is set to the product of FACTOR and the euclidean norm of DIAG*X if
!    nonzero, or else to FACTOR itself.  In most cases, FACTOR should lie
!    in the interval (0.1, 100) with 100 the recommended value.
!
!    Input, integer ( kind = 4 ) NPRINT, enables controlled printing of
!    iterates if it is positive.  In this case, FCN is called with IFLAG = 0 at
!    the beginning of the first iteration and every NPRINT iterations thereafter
!    and immediately prior to return, with X and FVEC available
!    for printing.  If NPRINT is not positive, no special calls
!    of FCN with IFLAG = 0 are made.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG.
!    See the description of FCN.
!    Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, relative error between two consecutive iterates is at most XTOL.
!    2, number of calls to FCN has reached or exceeded MAXFEV.
!    3, XTOL is too small.  No further improvement in the approximate
!       solution X is possible.
!    4, iteration is not making good progress, as measured by the improvement
!       from the last five jacobian evaluations.
!    5, iteration is not making good progress, as measured by the improvement
!       from the last ten iterations.
!
!    Output, integer ( kind = 4 ) NFEV, the number of calls to FCN.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), an N by N array which contains
!    the orthogonal matrix Q produced by the QR factorization of the final
!    approximate jacobian.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of FJAC.
!    LDFJAC must be at least N.
!
!    Output, real ( kind = 8 ) R(LR), the upper triangular matrix produced by
!    the QR factorization of the final approximate jacobian, stored rowwise.
!
!    Input, integer ( kind = 4 ) LR, the size of the R array, which must be no
!    less than (N*(N+1))/2.
!
!    Output, real ( kind = 8 ) QTF(N), contains the vector Q'*FVEC.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) lr
   integer(kind=4) n
   integer(kind=4) m

   real(kind=8) actred
   real(kind=8) delta
   real(kind=8) diag(n)
   real(kind=8) enorm
   real(kind=8) epsfcn
   real(kind=8) epsmch
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fnorm
   real(kind=8) fnorm1
   real(kind=8) fvec(n)
   integer(kind=4) i
   integer(kind=4) iflag
   integer(kind=4) info
   integer(kind=4) iter
   integer(kind=4) iwa(1)
   integer(kind=4) j
   logical jeval
   integer(kind=4) l
   integer(kind=4) maxfev
   integer(kind=4) ml
   integer(kind=4) mode
   integer(kind=4) msum
   integer(kind=4) mu
   integer(kind=4) ncfail
   integer(kind=4) nslow1
   integer(kind=4) nslow2
   integer(kind=4) ncsuc
   integer(kind=4) nfev
   integer(kind=4) nprint
   logical pivot
   real(kind=8) pnorm
   real(kind=8) prered
   real(kind=8) qtf(n)
   real(kind=8) r(lr)
   real(kind=8) ratio
   logical sing
   real(kind=8) sum2
   real(kind=8) temp
   real(kind=8) wa1(n)
   real(kind=8) wa2(n)
   real(kind=8) wa3(n)
   real(kind=8) wa4(n)
   real(kind=8) x(n)
   real(kind=8) xnorm
   real(kind=8) xtol
   real(kind=8) prms(m)

   epsmch = epsilon(epsmch)

   info = 0
   iflag = 0
   nfev = 0
!
!  Check the input parameters for errors.
!
   if (n <= 0) then
      return
   else if (xtol < 0.0d+00) then
      return
   else if (maxfev <= 0) then
      return
   else if (ml < 0) then
      return
   else if (mu < 0) then
      return
   else if (factor <= 0.0d+00) then
      return
   else if (ldfjac < n) then
      return
   else if (lr < (n*(n + 1))/2) then
      return
   end if

   if (mode == 2) then

      do j = 1, n
         if (diag(j) <= 0.0d+00) then
            go to 300
         end if
      end do

   end if
!
!  Evaluate the function at the starting point
!  and calculate its norm.
!
   iflag = 1
   call fcn(n, x, fvec, iflag, m, prms)
   nfev = 1

   if (iflag < 0) then
      go to 300
   end if

   fnorm = enorm(n, fvec)
!
!  Determine the number of calls to FCN needed to compute the jacobian matrix.
!
   msum = min(ml + mu + 1, n)
!
!  Initialize iteration counter and monitors.
!
   iter = 1
   ncsuc = 0
   ncfail = 0
   nslow1 = 0
   nslow2 = 0
!
!  Beginning of the outer loop.
!
30 continue

   jeval = .true.
!
!  Calculate the jacobian matrix.
!
   iflag = 2
   call fdjac1(fcn, n, x, fvec, fjac, ldfjac, iflag, ml, mu, epsfcn, m, prms)

   nfev = nfev + msum

   if (iflag < 0) then
      go to 300
   end if
!
!  Compute the QR factorization of the jacobian.
!
   pivot = .false.
   call qrfac(n, n, fjac, ldfjac, pivot, iwa, 1, wa1, wa2)
!
!  On the first iteration, if MODE is 1, scale according
!  to the norms of the columns of the initial jacobian.
!
   if (iter == 1) then

      if (mode /= 2) then

         diag(1:n) = wa2(1:n)
         do j = 1, n
            if (wa2(j) == 0.0d+00) then
               diag(j) = 1.0d+00
            end if
         end do

      end if
!
!  On the first iteration, calculate the norm of the scaled X
!  and initialize the step bound DELTA.
!
      wa3(1:n) = diag(1:n)*x(1:n)
      xnorm = enorm(n, wa3)
      delta = factor*xnorm
      if (delta == 0.0d+00) then
         delta = factor
      end if

   end if
!
!  Form Q' * FVEC and store in QTF.
!
   qtf(1:n) = fvec(1:n)

   do j = 1, n

      if (fjac(j, j) /= 0.0d+00) then
         temp = -dot_product(qtf(j:n), fjac(j:n, j))/fjac(j, j)
         qtf(j:n) = qtf(j:n) + fjac(j:n, j)*temp
      end if

   end do
!
!  Copy the triangular factor of the QR factorization into R.
!
   sing = .false.

   do j = 1, n
      l = j
      do i = 1, j - 1
         r(l) = fjac(i, j)
         l = l + n - i
      end do
      r(l) = wa1(j)
      if (wa1(j) == 0.0d+00) then
         sing = .true.
      end if
   end do
!
!  Accumulate the orthogonal factor in FJAC.
!
   call qform(n, n, fjac, ldfjac)
!
!  Rescale if necessary.
!
   if (mode /= 2) then
      do j = 1, n
         diag(j) = max(diag(j), wa2(j))
      end do
   end if
!
!  Beginning of the inner loop.
!
180 continue
!
!  If requested, call FCN to enable printing of iterates.
!
   if (0 < nprint) then
      iflag = 0
      if (mod(iter - 1, nprint) == 0) then
         call fcn(n, x, fvec, iflag, m, prms)
      end if
      if (iflag < 0) then
         go to 300
      end if
   end if
!
!  Determine the direction P.
!
   call dogleg(n, r, lr, diag, qtf, delta, wa1)
!
!  Store the direction P and X + P.
!  Calculate the norm of P.
!
   wa1(1:n) = -wa1(1:n)
   wa2(1:n) = x(1:n) + wa1(1:n)
   wa3(1:n) = diag(1:n)*wa1(1:n)

   pnorm = enorm(n, wa3)
!
!  On the first iteration, adjust the initial step bound.
!
   if (iter == 1) then
      delta = min(delta, pnorm)
   end if
!
!  Evaluate the function at X + P and calculate its norm.
!
   iflag = 1
   call fcn(n, wa2, wa4, iflag, m, prms)
   nfev = nfev + 1

   if (iflag < 0) then
      go to 300
   end if

   fnorm1 = enorm(n, wa4)
!
!  Compute the scaled actual reduction.
!
   actred = -1.0d+00
   if (fnorm1 < fnorm) then
      actred = 1.0d+00 - (fnorm1/fnorm)**2
   endif
!
!  Compute the scaled predicted reduction.
!
   l = 1
   do i = 1, n
      sum2 = 0.0d+00
      do j = i, n
         sum2 = sum2 + r(l)*wa1(j)
         l = l + 1
      end do
      wa3(i) = qtf(i) + sum2
   end do

   temp = enorm(n, wa3)
   prered = 0.0d+00
   if (temp < fnorm) then
      prered = 1.0d+00 - (temp/fnorm)**2
   end if
!
!  Compute the ratio of the actual to the predicted reduction.
!
   ratio = 0.0d+00
   if (0.0d+00 < prered) then
      ratio = actred/prered
   end if
!
!  Update the step bound.
!
   if (ratio < 0.1d+00) then

      ncsuc = 0
      ncfail = ncfail + 1
      delta = 0.5d+00*delta

   else

      ncfail = 0
      ncsuc = ncsuc + 1

      if (0.5d+00 <= ratio .or. 1 < ncsuc) then
         delta = max(delta, pnorm/0.5d+00)
      end if

      if (abs(ratio - 1.0d+00) <= 0.1d+00) then
         delta = pnorm/0.5d+00
      end if

   end if
!
!  Test for successful iteration.
!
!  Successful iteration.
!  Update X, FVEC, and their norms.
!
   if (0.0001d+00 <= ratio) then
      x(1:n) = wa2(1:n)
      wa2(1:n) = diag(1:n)*x(1:n)
      fvec(1:n) = wa4(1:n)
      xnorm = enorm(n, wa2)
      fnorm = fnorm1
      iter = iter + 1
   end if
!
!  Determine the progress of the iteration.
!
   nslow1 = nslow1 + 1
   if (0.001d+00 <= actred) then
      nslow1 = 0
   end if

   if (jeval) then
      nslow2 = nslow2 + 1
   end if

   if (0.1d+00 <= actred) then
      nslow2 = 0
   end if
!
!  Test for convergence.
!
   if (delta <= xtol*xnorm .or. fnorm == 0.0d+00) then
      info = 1
   end if

   if (info /= 0) then
      go to 300
   end if
!
!  Tests for termination and stringent tolerances.
!
   if (maxfev <= nfev) then
      info = 2
   end if

   if (0.1d+00*max(0.1d+00*delta, pnorm) <= epsmch*xnorm) then
      info = 3
   end if

   if (nslow2 == 5) then
      info = 4
   end if

   if (nslow1 == 10) then
      info = 5
   end if

   if (info /= 0) then
      go to 300
   end if
!
!  Criterion for recalculating jacobian approximation
!  by forward differences.
!
   if (ncfail == 2) then
      go to 290
   end if
!
!  Calculate the rank one modification to the jacobian
!  and update QTF if necessary.
!
   do j = 1, n
      sum2 = dot_product(wa4(1:n), fjac(1:n, j))
      wa2(j) = (sum2 - wa3(j))/pnorm
      wa1(j) = diag(j)*((diag(j)*wa1(j))/pnorm)
      if (0.0001d+00 <= ratio) then
         qtf(j) = sum2
      end if
   end do
!
!  Compute the QR factorization of the updated jacobian.
!
   call r1updt(n, n, r, lr, wa1, wa2, wa3, sing)
   call r1mpyq(n, n, fjac, ldfjac, wa2, wa3)
   call r1mpyq(1, n, qtf, 1, wa2, wa3)
!
!  End of the inner loop.
!
   jeval = .false.
   go to 180

290 continue
!
!  End of the outer loop.
!
   go to 30

300 continue
!
!  Termination, either normal or user imposed.
!
   if (iflag < 0) then
      info = iflag
   end if

   iflag = 0

   if (0 < nprint) then
      call fcn(n, x, fvec, iflag, m, prms)
   end if

   return

Here is the call graph for this function:

Here is the caller graph for this function:

hybrd1()

subroutine hybrd1	(	external	fcn,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(n)	fvec,
		real(kind=8)	tol,
		integer(kind=4)	info,
		integer(kind=4)	m,
		real(kind=8), dimension(m)	prms
	)

Definition at line 1414 of file suews_util_minpack.f95.

References hybrd().

Referenced by anohm_module::anohm_bo_cal().

!*****************************************************************************80
!
!! HYBRD1 seeks a zero of N nonlinear equations in N variables.
!
!  Discussion:
!
!    HYBRD1 finds a zero of a system of N nonlinear functions in N variables
!    by a modification of the Powell hybrid method.  This is done by using the
!    more general nonlinear equation solver HYBRD.  The user must provide a
!    subroutine which calculates the functions.  The jacobian is then
!    calculated by a forward-difference approximation.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    19 August 2016
!    30 Aug 2017: added `prms` to pass paramters for constructing `fcn`
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions.  The routine should have the form:
!      subroutine fcn ( n, x, fvec, iflag )
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fvec(n)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!      integer ( kind = 4 ) m
!      real ( kind = 8 ) prm(m)
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) N, the number of functions and variables.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.
!
!    Input, real ( kind = 8 ) FVEC(N), the functions evaluated at the output X.
!
!    Input, integer ( kind = 4 ) M, the number of parameters for constructing FCN.
!
!    Input, real ( kind = 8 ) PRMS(M), static paramters for constructing FCN.
!
!    Input, real ( kind = 8 ) TOL.  Termination occurs when the algorithm
!    estimates that the relative error between X and the solution is at
!    most TOL.  TOL should be nonnegative.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG. See the
!    description of FCN.
!    Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, algorithm estimates that the relative error between X and the
!       solution is at most TOL.
!    2, number of calls to FCN has reached or exceeded 200*(N+1).
!    3, TOL is too small.  No further improvement in the approximate
!       solution X is possible.
!    4, the iteration is not making good progress.
!
   implicit none

   ! integer ( kind = 4 ) lwa
   integer(kind=4) n
   integer(kind=4) m

   real(kind=8) diag(n)
   real(kind=8) epsfcn
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(n, n)
   real(kind=8) fvec(n)
   integer(kind=4) info
   ! integer ( kind = 4 ) j
   integer(kind=4) ldfjac
   integer(kind=4) lr
   integer(kind=4) maxfev
   integer(kind=4) ml
   integer(kind=4) mode
   integer(kind=4) mu
   integer(kind=4) nfev
   integer(kind=4) nprint
   real(kind=8) qtf(n)
   real(kind=8) r((n*(n + 1))/2)
   real(kind=8) tol
   real(kind=8) x(n)
   real(kind=8) xtol
   real(kind=8) prms(m)

   if (n <= 0) then
      info = 0
      return
   end if

   if (tol < 0.0d+00) then
      info = 0
      return
   end if

   xtol = tol
   maxfev = 200*(n + 1)
   ml = n - 1
   mu = n - 1
   epsfcn = 0.0d+00
   diag(1:n) = 1.0d+00
   mode = 2
   factor = 100.0d+00
   nprint = 0
   info = 0
   nfev = 0
   fjac(1:n, 1:n) = 0.0d+00
   ldfjac = n
   r(1:(n*(n + 1))/2) = 0.0d+00
   lr = (n*(n + 1))/2
   qtf(1:n) = 0.0d+00

   call hybrd(fcn, n, x, fvec, xtol, maxfev, ml, mu, epsfcn, diag, mode, &
              factor, nprint, info, nfev, fjac, ldfjac, r, lr, qtf, m, prms)

   if (info == 5) then
      info = 4
   end if

   return

Here is the call graph for this function:

Here is the caller graph for this function:

hybrj()

subroutine hybrj	(	external	fcn,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(n)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		real(kind=8)	xtol,
		integer(kind=4)	maxfev,
		real(kind=8), dimension(n)	diag,
		integer(kind=4)	mode,
		real(kind=8)	factor,
		integer(kind=4)	nprint,
		integer(kind=4)	info,
		integer(kind=4)	nfev,
		integer(kind=4)	njev,
		real(kind=8), dimension(lr)	r,
		integer(kind=4)	lr,
		real(kind=8), dimension(n)	qtf
	)

Definition at line 1560 of file suews_util_minpack.f95.

References dogleg(), qform(), qrfac(), r1mpyq(), and r1updt().

Referenced by hybrj1().

!*****************************************************************************80
!
!! HYBRJ seeks a zero of N nonlinear equations in N variables.
!
!  Discussion:
!
!    HYBRJ finds a zero of a system of N nonlinear functions in N variables
!    by a modification of the Powell hybrid method.  The user must provide a
!    subroutine which calculates the functions and the jacobian.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions and the jacobian.  FCN should have the form:
!
!      subroutine fcn ( n, x, fvec, fjac, ldfjac, iflag )
!      integer ( kind = 4 ) ldfjac
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fjac(ldfjac,n)
!      real ( kind = 8 ) fvec(n)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    If IFLAG = 2 on input, FCN should calculate the jacobian at X and
!    return this matrix in FJAC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) N, the number of functions and variables.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.
!
!    Output, real ( kind = 8 ) FVEC(N), the functions evaluated at the output X.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), an N by N matrix, containing
!    the orthogonal matrix Q produced by the QR factorization
!    of the final approximate jacobian.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of the
!    array FJAC.  LDFJAC must be at least N.
!
!    Input, real ( kind = 8 ) XTOL.  Termination occurs when the relative error
!    between two consecutive iterates is at most XTOL.  XTOL should be
!    nonnegative.
!
!    Input, integer ( kind = 4 ) MAXFEV.  Termination occurs when the number of
!    calls to FCN is at least MAXFEV by the end of an iteration.
!
!    Input/output, real ( kind = 8 ) DIAG(N).  If MODE = 1, then DIAG is set
!    internally.  If MODE = 2, then DIAG must contain positive entries that
!    serve as multiplicative scale factors for the variables.
!
!    Input, integer ( kind = 4 ) MODE, scaling option.
!    1, variables will be scaled internally.
!    2, scaling is specified by the input DIAG vector.
!
!    Input, real ( kind = 8 ) FACTOR, determines the initial step bound.  This
!    bound is set to the product of FACTOR and the euclidean norm of DIAG*X if
!    nonzero, or else to FACTOR itself.  In most cases, FACTOR should lie
!    in the interval (0.1, 100) with 100 the recommended value.
!
!    Input, integer ( kind = 4 ) NPRINT, enables controlled printing of iterates
!    if it is positive.  In this case, FCN is called with IFLAG = 0 at the
!    beginning of the first iteration and every NPRINT iterations thereafter
!    and immediately prior to return, with X and FVEC available
!    for printing.  If NPRINT is not positive, no special calls
!    of FCN with IFLAG = 0 are made.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG.
!    See the description of FCN.  Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, relative error between two consecutive iterates is at most XTOL.
!    2, number of calls to FCN with IFLAG = 1 has reached MAXFEV.
!    3, XTOL is too small.  No further improvement in
!       the approximate solution X is possible.
!    4, iteration is not making good progress, as measured by the
!       improvement from the last five jacobian evaluations.
!    5, iteration is not making good progress, as measured by the
!       improvement from the last ten iterations.
!
!    Output, integer ( kind = 4 ) NFEV, the number of calls to FCN
!    with IFLAG = 1.
!
!    Output, integer ( kind = 4 ) NJEV, the number of calls to FCN
!    with IFLAG = 2.
!
!    Output, real ( kind = 8 ) R(LR), the upper triangular matrix produced
!    by the QR factorization of the final approximate jacobian, stored rowwise.
!
!    Input, integer ( kind = 4 ) LR, the size of the R array, which must
!    be no less than (N*(N+1))/2.
!
!    Output, real ( kind = 8 ) QTF(N), contains the vector Q'*FVEC.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) lr
   integer(kind=4) n

   real(kind=8) actred
   real(kind=8) delta
   real(kind=8) diag(n)
   real(kind=8) enorm
   real(kind=8) epsmch
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fnorm
   real(kind=8) fnorm1
   real(kind=8) fvec(n)
   integer(kind=4) i
   integer(kind=4) iflag
   integer(kind=4) info
   integer(kind=4) iter
   integer(kind=4) iwa(1)
   integer(kind=4) j
   logical jeval
   integer(kind=4) l
   integer(kind=4) maxfev
   integer(kind=4) mode
   integer(kind=4) ncfail
   integer(kind=4) nslow1
   integer(kind=4) nslow2
   integer(kind=4) ncsuc
   integer(kind=4) nfev
   integer(kind=4) njev
   integer(kind=4) nprint
   logical pivot
   real(kind=8) pnorm
   real(kind=8) prered
   real(kind=8) qtf(n)
   real(kind=8) r(lr)
   real(kind=8) ratio
   logical sing
   real(kind=8) sum2
   real(kind=8) temp
   real(kind=8) wa1(n)
   real(kind=8) wa2(n)
   real(kind=8) wa3(n)
   real(kind=8) wa4(n)
   real(kind=8) x(n)
   real(kind=8) xnorm
   real(kind=8) xtol

   epsmch = epsilon(epsmch)

   info = 0
   iflag = 0
   nfev = 0
   njev = 0
!
!  Check the input parameters for errors.
!
   if (n <= 0) then
      if (iflag < 0) then
         info = iflag
      end if
      iflag = 0
      if (0 < nprint) then
         call fcn(n, x, fvec, fjac, ldfjac, iflag)
      end if
      return
   end if

   if (ldfjac < n .or. &
       xtol < 0.0d+00 .or. &
       maxfev <= 0 .or. &
       factor <= 0.0d+00 .or. &
       lr < (n*(n + 1))/2) then
      if (iflag < 0) then
         info = iflag
      end if
      iflag = 0
      if (0 < nprint) then
         call fcn(n, x, fvec, fjac, ldfjac, iflag)
      end if
      return
   end if

   if (mode == 2) then
      do j = 1, n
         if (diag(j) <= 0.0d+00) then
            if (iflag < 0) then
               info = iflag
            end if
            iflag = 0
            if (0 < nprint) then
               call fcn(n, x, fvec, fjac, ldfjac, iflag)
            end if
            return
         end if
      end do
   end if
!
!  Evaluate the function at the starting point and calculate its norm.
!
   iflag = 1
   call fcn(n, x, fvec, fjac, ldfjac, iflag)
   nfev = 1

   if (iflag < 0) then
      if (iflag < 0) then
         info = iflag
      end if
      iflag = 0
      if (0 < nprint) then
         call fcn(n, x, fvec, fjac, ldfjac, iflag)
      end if
      return
   end if

   fnorm = enorm(n, fvec)
!
!  Initialize iteration counter and monitors.
!
   iter = 1
   ncsuc = 0
   ncfail = 0
   nslow1 = 0
   nslow2 = 0
!
!  Beginning of the outer loop.
!
   do

      jeval = .true.
!
!  Calculate the jacobian matrix.
!
      iflag = 2
      call fcn(n, x, fvec, fjac, ldfjac, iflag)
      njev = njev + 1

      if (iflag < 0) then
         info = iflag
         iflag = 0
         if (0 < nprint) then
            call fcn(n, x, fvec, fjac, ldfjac, iflag)
         end if
         return
      end if
!
!  Compute the QR factorization of the jacobian.
!
      pivot = .false.
      call qrfac(n, n, fjac, ldfjac, pivot, iwa, 1, wa1, wa2)
!
!  On the first iteration, if MODE is 1, scale according
!  to the norms of the columns of the initial jacobian.
!
      if (iter == 1) then

         if (mode /= 2) then
            diag(1:n) = wa2(1:n)
            do j = 1, n
               if (wa2(j) == 0.0d+00) then
                  diag(j) = 1.0d+00
               end if
            end do
         end if
!
!  On the first iteration, calculate the norm of the scaled X
!  and initialize the step bound DELTA.
!
         wa3(1:n) = diag(1:n)*x(1:n)
         xnorm = enorm(n, wa3)
         delta = factor*xnorm
         if (delta == 0.0d+00) then
            delta = factor
         end if

      end if
!
!  Form Q'*FVEC and store in QTF.
!
      qtf(1:n) = fvec(1:n)

      do j = 1, n
         if (fjac(j, j) /= 0.0d+00) then
            sum2 = 0.0d+00
            do i = j, n
               sum2 = sum2 + fjac(i, j)*qtf(i)
            end do
            temp = -sum2/fjac(j, j)
            do i = j, n
               qtf(i) = qtf(i) + fjac(i, j)*temp
            end do
         end if
      end do
!
!  Copy the triangular factor of the QR factorization into R.
!
      sing = .false.

      do j = 1, n
         l = j
         do i = 1, j - 1
            r(l) = fjac(i, j)
            l = l + n - i
         end do
         r(l) = wa1(j)
         if (wa1(j) == 0.0d+00) then
            sing = .true.
         end if
      end do
!
!  Accumulate the orthogonal factor in FJAC.
!
      call qform(n, n, fjac, ldfjac)
!
!  Rescale if necessary.
!
      if (mode /= 2) then
         do j = 1, n
            diag(j) = max(diag(j), wa2(j))
         end do
      end if
!
!  Beginning of the inner loop.
!
      do
!
!  If requested, call FCN to enable printing of iterates.
!
         if (0 < nprint) then

            iflag = 0
            if (mod(iter - 1, nprint) == 0) then
               call fcn(n, x, fvec, fjac, ldfjac, iflag)
            end if

            if (iflag < 0) then
               info = iflag
               iflag = 0
               if (0 < nprint) then
                  call fcn(n, x, fvec, fjac, ldfjac, iflag)
               end if
               return
            end if

         end if
!
!  Determine the direction P.
!
         call dogleg(n, r, lr, diag, qtf, delta, wa1)
!
!  Store the direction P and X + P.
!  Calculate the norm of P.
!
         wa1(1:n) = -wa1(1:n)
         wa2(1:n) = x(1:n) + wa1(1:n)
         wa3(1:n) = diag(1:n)*wa1(1:n)
         pnorm = enorm(n, wa3)
!
!  On the first iteration, adjust the initial step bound.
!
         if (iter == 1) then
            delta = min(delta, pnorm)
         end if
!
!  Evaluate the function at X + P and calculate its norm.
!
         iflag = 1
         call fcn(n, wa2, wa4, fjac, ldfjac, iflag)
         nfev = nfev + 1

         if (iflag < 0) then
            info = iflag
            iflag = 0
            if (0 < nprint) then
               call fcn(n, x, fvec, fjac, ldfjac, iflag)
            end if
            return
         end if

         fnorm1 = enorm(n, wa4)
!
!  Compute the scaled actual reduction.
!
         actred = -1.0d+00
         if (fnorm1 < fnorm) then
            actred = 1.0d+00 - (fnorm1/fnorm)**2
         end if
!
!  Compute the scaled predicted reduction.
!
         l = 1
         do i = 1, n
            sum2 = 0.0d+00
            do j = i, n
               sum2 = sum2 + r(l)*wa1(j)
               l = l + 1
            end do
            wa3(i) = qtf(i) + sum2
         end do

         temp = enorm(n, wa3)
         prered = 0.0d+00
         if (temp < fnorm) then
            prered = 1.0d+00 - (temp/fnorm)**2
         end if
!
!  Compute the ratio of the actual to the predicted reduction.
!
         if (0.0d+00 < prered) then
            ratio = actred/prered
         else
            ratio = 0.0d+00
         end if
!
!  Update the step bound.
!
         if (ratio < 0.1d+00) then

            ncsuc = 0
            ncfail = ncfail + 1
            delta = 0.5d+00*delta

         else

            ncfail = 0
            ncsuc = ncsuc + 1

            if (0.5d+00 <= ratio .or. 1 < ncsuc) then
               delta = max(delta, pnorm/0.5d+00)
            end if

            if (abs(ratio - 1.0d+00) <= 0.1d+00) then
               delta = pnorm/0.5d+00
            end if

         end if
!
!  Test for successful iteration.
!

!
!  Successful iteration.
!  Update X, FVEC, and their norms.
!
         if (0.0001d+00 <= ratio) then
            x(1:n) = wa2(1:n)
            wa2(1:n) = diag(1:n)*x(1:n)
            fvec(1:n) = wa4(1:n)
            xnorm = enorm(n, wa2)
            fnorm = fnorm1
            iter = iter + 1
         end if
!
!  Determine the progress of the iteration.
!
         nslow1 = nslow1 + 1
         if (0.001d+00 <= actred) then
            nslow1 = 0
         end if

         if (jeval) then
            nslow2 = nslow2 + 1
         end if

         if (0.1d+00 <= actred) then
            nslow2 = 0
         end if
!
!  Test for convergence.
!
         if (delta <= xtol*xnorm .or. fnorm == 0.0d+00) then
            info = 1
         end if

         if (info /= 0) then
            iflag = 0
            if (0 < nprint) then
               call fcn(n, x, fvec, fjac, ldfjac, iflag)
            end if
            return
         end if
!
!  Tests for termination and stringent tolerances.
!
         if (maxfev <= nfev) then
            info = 2
         end if

         if (0.1d+00*max(0.1d+00*delta, pnorm) <= epsmch*xnorm) then
            info = 3
         end if

         if (nslow2 == 5) then
            info = 4
         end if

         if (nslow1 == 10) then
            info = 5
         end if

         if (info /= 0) then
            iflag = 0
            if (0 < nprint) then
               call fcn(n, x, fvec, fjac, ldfjac, iflag)
            end if
            return
         end if
!
!  Criterion for recalculating jacobian.
!
         if (ncfail == 2) then
            exit
         end if
!
!  Calculate the rank one modification to the jacobian
!  and update QTF if necessary.
!
         do j = 1, n
            sum2 = dot_product(wa4(1:n), fjac(1:n, j))
            wa2(j) = (sum2 - wa3(j))/pnorm
            wa1(j) = diag(j)*((diag(j)*wa1(j))/pnorm)
            if (0.0001d+00 <= ratio) then
               qtf(j) = sum2
            end if
         end do
!
!  Compute the QR factorization of the updated jacobian.
!
         call r1updt(n, n, r, lr, wa1, wa2, wa3, sing)
         call r1mpyq(n, n, fjac, ldfjac, wa2, wa3)
         call r1mpyq(1, n, qtf, 1, wa2, wa3)
!
!  End of the inner loop.
!
         jeval = .false.

      end do
!
!  End of the outer loop.
!
   end do

Here is the call graph for this function:

Here is the caller graph for this function:

hybrj1()

subroutine hybrj1	(	external	fcn,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(n)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		real(kind=8)	tol,
		integer(kind=4)	info
	)

Definition at line 2128 of file suews_util_minpack.f95.

References hybrj().

!*****************************************************************************80
!
!! HYBRJ1 seeks a zero of N equations in N variables by Powell's method.
!
!  Discussion:
!
!    HYBRJ1 finds a zero of a system of N nonlinear functions in N variables
!    by a modification of the Powell hybrid method.  This is done by using the
!    more general nonlinear equation solver HYBRJ.  The user
!    must provide a subroutine which calculates the functions
!    and the jacobian.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions and the jacobian.  FCN should have the form:
!      subroutine fcn ( n, x, fvec, fjac, ldfjac, iflag )
!      integer ( kind = 4 ) ldfjac
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fjac(ldfjac,n)
!      real ( kind = 8 ) fvec(n)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    If IFLAG = 2 on input, FCN should calculate the jacobian at X and
!    return this matrix in FJAC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) N, the number of functions and variables.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.
!
!    Output, real ( kind = 8 ) FVEC(N), the functions evaluated at the output X.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), an N by N array which contains
!    the orthogonal matrix Q produced by the QR factorization of the final
!    approximate jacobian.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of  FJAC.
!    LDFJAC must be at least N.
!
!    Input, real ( kind = 8 ) TOL.  Termination occurs when the algorithm
!    estimates that the relative error between X and the solution is at most
!    TOL.  TOL should be nonnegative.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG. See description
!    of FCN.  Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, algorithm estimates that the relative error between X and the
!       solution is at most TOL.
!    2, number of calls to FCN with IFLAG = 1 has reached 100*(N+1).
!    3, TOL is too small.  No further improvement in the approximate
!       solution X is possible.
!    4, iteration is not making good progress.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) n

   real(kind=8) diag(n)
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fvec(n)
   integer(kind=4) info
   ! integer ( kind = 4 ) j
   integer(kind=4) lr
   integer(kind=4) maxfev
   integer(kind=4) mode
   integer(kind=4) nfev
   integer(kind=4) njev
   integer(kind=4) nprint
   real(kind=8) qtf(n)
   real(kind=8) r((n*(n + 1))/2)
   real(kind=8) tol
   real(kind=8) x(n)
   real(kind=8) xtol

   info = 0

   if (n <= 0) then
      return
   else if (ldfjac < n) then
      return
   else if (tol < 0.0d+00) then
      return
   end if

   maxfev = 100*(n + 1)
   xtol = tol
   mode = 2
   diag(1:n) = 1.0d+00
   factor = 100.0d+00
   nprint = 0
   lr = (n*(n + 1))/2

   call hybrj(fcn, n, x, fvec, fjac, ldfjac, xtol, maxfev, diag, mode, &
              factor, nprint, info, nfev, njev, r, lr, qtf)

   if (info == 5) then
      info = 4
   end if

   return

Here is the call graph for this function:

lmder()

subroutine lmder	(	external	fcn,
		integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(m)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		real(kind=8)	ftol,
		real(kind=8)	xtol,
		real(kind=8)	gtol,
		integer(kind=4)	maxfev,
		real(kind=8), dimension(n)	diag,
		integer(kind=4)	mode,
		real(kind=8)	factor,
		integer(kind=4)	nprint,
		integer(kind=4)	info,
		integer(kind=4)	nfev,
		integer(kind=4)	njev,
		integer(kind=4), dimension(n)	ipvt,
		real(kind=8), dimension(n)	qtf
	)

Definition at line 2264 of file suews_util_minpack.f95.

References lmpar(), and qrfac().

Referenced by lmder1().

!*****************************************************************************80
!
!! LMDER minimizes M functions in N variables by the Levenberg-Marquardt method.
!
!  Discussion:
!
!    LMDER minimizes the sum of the squares of M nonlinear functions in
!    N variables by a modification of the Levenberg-Marquardt algorithm.
!    The user must provide a subroutine which calculates the functions
!    and the jacobian.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions and the jacobian.  FCN should have the form:
!      subroutine fcn ( m, n, x, fvec, fjac, ldfjac, iflag )
!      integer ( kind = 4 ) ldfjac
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fjac(ldfjac,n)
!      real ( kind = 8 ) fvec(m)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    If IFLAG = 2 on input, FCN should calculate the jacobian at X and
!    return this matrix in FJAC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) M, is the number of functions.
!
!    Input, integer ( kind = 4 ) N, is the number of variables.
!    N must not exceed M.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.
!
!    Output, real ( kind = 8 ) FVEC(M), the functions evaluated at the output X.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), an M by N array.  The upper
!    N by N submatrix of FJAC contains an upper triangular matrix R with
!    diagonal elements of nonincreasing magnitude such that
!      P' * ( JAC' * JAC ) * P = R' * R,
!    where P is a permutation matrix and JAC is the final calculated jacobian.
!    Column J of P is column IPVT(J) of the identity matrix.  The lower
!    trapezoidal part of FJAC contains information generated during
!    the computation of R.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of FJAC.
!    LDFJAC must be at least M.
!
!    Input, real ( kind = 8 ) FTOL.  Termination occurs when both the actual
!    and predicted relative reductions in the sum of squares are at most FTOL.
!    Therefore, FTOL measures the relative error desired in the sum of
!    squares.  FTOL should be nonnegative.
!
!    Input, real ( kind = 8 ) XTOL.  Termination occurs when the relative error
!    between two consecutive iterates is at most XTOL.  XTOL should be
!    nonnegative.
!
!    Input, real ( kind = 8 ) GTOL.  Termination occurs when the cosine of the
!    angle between FVEC and any column of the jacobian is at most GTOL in
!    absolute value.  Therefore, GTOL measures the orthogonality desired
!    between the function vector and the columns of the jacobian.  GTOL should
!    be nonnegative.
!
!    Input, integer ( kind = 4 ) MAXFEV.  Termination occurs when the number of
!    calls to FCN with IFLAG = 1 is at least MAXFEV by the end of an iteration.
!
!    Input/output, real ( kind = 8 ) DIAG(N).  If MODE = 1, then DIAG is set
!    internally.  If MODE = 2, then DIAG must contain positive entries that
!    serve as multiplicative scale factors for the variables.
!
!    Input, integer ( kind = 4 ) MODE, scaling option.
!    1, variables will be scaled internally.
!    2, scaling is specified by the input DIAG vector.
!
!    Input, real ( kind = 8 ) FACTOR, determines the initial step bound.  This
!    bound is set to the product of FACTOR and the euclidean norm of DIAG*X if
!    nonzero, or else to FACTOR itself.  In most cases, FACTOR should lie
!    in the interval (0.1, 100) with 100 the recommended value.
!
!    Input, integer ( kind = 4 ) NPRINT, enables controlled printing of iterates
!    if it is positive.  In this case, FCN is called with IFLAG = 0 at the
!    beginning of the first iteration and every NPRINT iterations thereafter
!    and immediately prior to return, with X and FVEC available
!    for printing.  If NPRINT is not positive, no special calls
!    of FCN with IFLAG = 0 are made.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG. See description
!    of FCN.  Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, both actual and predicted relative reductions in the sum of
!       squares are at most FTOL.
!    2, relative error between two consecutive iterates is at most XTOL.
!    3, conditions for INFO = 1 and INFO = 2 both hold.
!    4, the cosine of the angle between FVEC and any column of the jacobian
!       is at most GTOL in absolute value.
!    5, number of calls to FCN with IFLAG = 1 has reached MAXFEV.
!    6, FTOL is too small.  No further reduction in the sum of squares
!       is possible.
!    7, XTOL is too small.  No further improvement in the approximate
!       solution X is possible.
!    8, GTOL is too small.  FVEC is orthogonal to the columns of the
!       jacobian to machine precision.
!
!    Output, integer ( kind = 4 ) NFEV, the number of calls to FCN with
!    IFLAG = 1.
!
!    Output, integer ( kind = 4 ) NJEV, the number of calls to FCN with
!    IFLAG = 2.
!
!    Output, integer ( kind = 4 ) IPVT(N), defines a permutation matrix P
!    such that JAC*P = Q*R, where JAC is the final calculated jacobian, Q is
!    orthogonal (not stored), and R is upper triangular with diagonal
!    elements of nonincreasing magnitude.  Column J of P is column
!    IPVT(J) of the identity matrix.
!
!    Output, real ( kind = 8 ) QTF(N), contains the first N elements of Q'*FVEC.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) actred
   real(kind=8) delta
   real(kind=8) diag(n)
   real(kind=8) dirder
   real(kind=8) enorm
   real(kind=8) epsmch
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fnorm
   real(kind=8) fnorm1
   real(kind=8) ftol
   real(kind=8) fvec(m)
   real(kind=8) gnorm
   real(kind=8) gtol
   ! integer ( kind = 4 ) i
   integer(kind=4) iflag
   integer(kind=4) info
   integer(kind=4) ipvt(n)
   integer(kind=4) iter
   integer(kind=4) j
   integer(kind=4) l
   integer(kind=4) maxfev
   integer(kind=4) mode
   integer(kind=4) nfev
   integer(kind=4) njev
   integer(kind=4) nprint
   real(kind=8) par
   logical pivot
   real(kind=8) pnorm
   real(kind=8) prered
   real(kind=8) qtf(n)
   real(kind=8) ratio
   real(kind=8) sum2
   real(kind=8) temp
   real(kind=8) temp1
   real(kind=8) temp2
   real(kind=8) wa1(n)
   real(kind=8) wa2(n)
   real(kind=8) wa3(n)
   real(kind=8) wa4(m)
   real(kind=8) xnorm
   real(kind=8) x(n)
   real(kind=8) xtol

   epsmch = epsilon(epsmch)

   info = 0
   iflag = 0
   nfev = 0
   njev = 0
!
!  Check the input parameters for errors.
!
   if (n <= 0) then
      go to 300
   end if

   if (m < n) then
      go to 300
   end if

   if (ldfjac < m &
       .or. ftol < 0.0d+00 .or. xtol < 0.0d+00 .or. gtol < 0.0d+00 &
       .or. maxfev <= 0 .or. factor <= 0.0d+00) then
      go to 300
   end if

   if (mode == 2) then
      do j = 1, n
         if (diag(j) <= 0.0d+00) then
            go to 300
         end if
      end do
   end if
!
!  Evaluate the function at the starting point and calculate its norm.
!
   iflag = 1
   call fcn(m, n, x, fvec, fjac, ldfjac, iflag)
   nfev = 1
   if (iflag < 0) then
      go to 300
   end if

   fnorm = enorm(m, fvec)
!
!  Initialize Levenberg-Marquardt parameter and iteration counter.
!
   par = 0.0d+00
   iter = 1
!
!  Beginning of the outer loop.
!
30 continue
!
!  Calculate the jacobian matrix.
!
   iflag = 2
   call fcn(m, n, x, fvec, fjac, ldfjac, iflag)

   njev = njev + 1

   if (iflag < 0) then
      go to 300
   end if
!
!  If requested, call FCN to enable printing of iterates.
!
   if (0 < nprint) then
      iflag = 0
      if (mod(iter - 1, nprint) == 0) then
         call fcn(m, n, x, fvec, fjac, ldfjac, iflag)
      end if
      if (iflag < 0) then
         go to 300
      end if
   end if
!
!  Compute the QR factorization of the jacobian.
!
   pivot = .true.
   call qrfac(m, n, fjac, ldfjac, pivot, ipvt, n, wa1, wa2)
!
!  On the first iteration and if mode is 1, scale according
!  to the norms of the columns of the initial jacobian.
!
   if (iter == 1) then

      if (mode /= 2) then
         diag(1:n) = wa2(1:n)
         do j = 1, n
            if (wa2(j) == 0.0d+00) then
               diag(j) = 1.0d+00
            end if
         end do
      end if
!
!  On the first iteration, calculate the norm of the scaled X
!  and initialize the step bound DELTA.
!
      wa3(1:n) = diag(1:n)*x(1:n)

      xnorm = enorm(n, wa3)
      delta = factor*xnorm
      if (delta == 0.0d+00) then
         delta = factor
      end if

   end if
!
!  Form Q'*FVEC and store the first N components in QTF.
!
   wa4(1:m) = fvec(1:m)

   do j = 1, n

      if (fjac(j, j) /= 0.0d+00) then
         sum2 = dot_product(wa4(j:m), fjac(j:m, j))
         temp = -sum2/fjac(j, j)
         wa4(j:m) = wa4(j:m) + fjac(j:m, j)*temp
      end if

      fjac(j, j) = wa1(j)
      qtf(j) = wa4(j)

   end do
!
!  Compute the norm of the scaled gradient.
!
   gnorm = 0.0d+00

   if (fnorm /= 0.0d+00) then

      do j = 1, n
         l = ipvt(j)
         if (wa2(l) /= 0.0d+00) then
            sum2 = dot_product(qtf(1:j), fjac(1:j, j))/fnorm
            gnorm = max(gnorm, abs(sum2/wa2(l)))
         end if
      end do

   end if
!
!  Test for convergence of the gradient norm.
!
   if (gnorm <= gtol) then
      info = 4
      go to 300
   end if
!
!  Rescale if necessary.
!
   if (mode /= 2) then
      do j = 1, n
         diag(j) = max(diag(j), wa2(j))
      end do
   end if
!
!  Beginning of the inner loop.
!
200 continue
!
!  Determine the Levenberg-Marquardt parameter.
!
   call lmpar(n, fjac, ldfjac, ipvt, diag, qtf, delta, par, wa1, wa2)
!
!  Store the direction p and x + p. calculate the norm of p.
!
   wa1(1:n) = -wa1(1:n)
   wa2(1:n) = x(1:n) + wa1(1:n)
   wa3(1:n) = diag(1:n)*wa1(1:n)

   pnorm = enorm(n, wa3)
!
!  On the first iteration, adjust the initial step bound.
!
   if (iter == 1) then
      delta = min(delta, pnorm)
   end if
!
!  Evaluate the function at x + p and calculate its norm.
!
   iflag = 1
   call fcn(m, n, wa2, wa4, fjac, ldfjac, iflag)

   nfev = nfev + 1

   if (iflag < 0) then
      go to 300
   end if

   fnorm1 = enorm(m, wa4)
!
!  Compute the scaled actual reduction.
!
   actred = -1.0d+00
   if (0.1d+00*fnorm1 < fnorm) then
      actred = 1.0d+00 - (fnorm1/fnorm)**2
   end if
!
!  Compute the scaled predicted reduction and
!  the scaled directional derivative.
!
   do j = 1, n
      wa3(j) = 0.0d+00
      l = ipvt(j)
      temp = wa1(l)
      wa3(1:j) = wa3(1:j) + fjac(1:j, j)*temp
   end do

   temp1 = enorm(n, wa3)/fnorm
   temp2 = (sqrt(par)*pnorm)/fnorm
   prered = temp1**2 + temp2**2/0.5d+00
   dirder = -(temp1**2 + temp2**2)
!
!  Compute the ratio of the actual to the predicted reduction.
!
   if (prered /= 0.0d+00) then
      ratio = actred/prered
   else
      ratio = 0.0d+00
   end if
!
!  Update the step bound.
!
   if (ratio <= 0.25d+00) then

      if (0.0d+00 <= actred) then
         temp = 0.5d+00
      end if

      if (actred < 0.0d+00) then
         temp = 0.5d+00*dirder/(dirder + 0.5d+00*actred)
      end if

      if (0.1d+00*fnorm1 >= fnorm .or. temp < 0.1d+00) then
         temp = 0.1d+00
      end if

      delta = temp*min(delta, pnorm/0.1d+00)
      par = par/temp

   else

      if (par == 0.0d+00 .or. ratio >= 0.75d+00) then
         delta = 2.0d+00*pnorm
         par = 0.5d+00*par
      end if

   end if
!
!  Successful iteration.
!
!  Update X, FVEC, and their norms.
!
   if (0.0001d+00 <= ratio) then
      x(1:n) = wa2(1:n)
      wa2(1:n) = diag(1:n)*x(1:n)
      fvec(1:m) = wa4(1:m)
      xnorm = enorm(n, wa2)
      fnorm = fnorm1
      iter = iter + 1
   end if
!
!  Tests for convergence.
!
   if (abs(actred) <= ftol .and. &
       prered <= ftol .and. &
       0.5d+00*ratio <= 1.0d+00) then
      info = 1
   end if

   if (delta <= xtol*xnorm) then
      info = 2
   end if

   if (abs(actred) <= ftol .and. prered <= ftol &
       .and. 0.5d+00*ratio <= 1.0d+00 .and. info == 2) then
      info = 3
   end if

   if (info /= 0) then
      go to 300
   end if
!
!  Tests for termination and stringent tolerances.
!
   if (nfev >= maxfev) then
      info = 5
   end if

   if (abs(actred) <= epsmch .and. prered <= epsmch &
       .and. 0.5d+00*ratio <= 1.0d+00) then
      info = 6
   end if

   if (delta <= epsmch*xnorm) then
      info = 7
   end if

   if (gnorm <= epsmch) then
      info = 8
   end if

   if (info /= 0) then
      go to 300
   end if
!
!  End of the inner loop. repeat if iteration unsuccessful.
!
   if (ratio < 0.0001d+00) then
      go to 200
   end if
!
!  End of the outer loop.
!
   go to 30

300 continue
!
!  Termination, either normal or user imposed.
!
   if (iflag < 0) then
      info = iflag
   end if

   iflag = 0

   if (0 < nprint) then
      call fcn(m, n, x, fvec, fjac, ldfjac, iflag)
   end if

   return

Here is the call graph for this function:

Here is the caller graph for this function:

lmder1()

subroutine lmder1	(	external	fcn,
		integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(m)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		real(kind=8)	tol,
		integer(kind=4)	info
	)

Definition at line 2791 of file suews_util_minpack.f95.

References lmder().

!*****************************************************************************80
!
!! LMDER1 minimizes M functions in N variables by Levenberg-Marquardt method.
!
!  Discussion:
!
!    LMDER1 minimizes the sum of the squares of M nonlinear functions in
!    N variables by a modification of the Levenberg-Marquardt algorithm.
!    This is done by using the more general least-squares solver LMDER.
!    The user must provide a subroutine which calculates the functions
!    and the jacobian.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions and the jacobian.  FCN should have the form:
!      subroutine fcn ( m, n, x, fvec, fjac, ldfjac, iflag )
!      integer ( kind = 4 ) ldfjac
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fjac(ldfjac,n)
!      real ( kind = 8 ) fvec(m)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    If IFLAG = 2 on input, FCN should calculate the jacobian at X and
!    return this matrix in FJAC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) M, the number of functions.
!
!    Input, integer ( kind = 4 ) N, is the number of variables.
!    N must not exceed M.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.
!
!    Output, real ( kind = 8 ) FVEC(M), the functions evaluated at the output X.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), an M by N array.  The upper
!    N by N submatrix contains an upper triangular matrix R with
!    diagonal elements of nonincreasing magnitude such that
!      P' * ( JAC' * JAC ) * P = R' * R,
!    where P is a permutation matrix and JAC is the final calculated
!    jacobian.  Column J of P is column IPVT(J) of the identity matrix.
!    The lower trapezoidal part of FJAC contains information generated during
!    the computation of R.
!
!    Input, integer ( kind = 4 ) LDFJAC, is the leading dimension of FJAC,
!    which must be no less than M.
!
!    Input, real ( kind = 8 ) TOL.  Termination occurs when the algorithm
!    estimates either that the relative error in the sum of squares is at
!    most TOL or that the relative error between X and the solution is at
!    most TOL.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG. See description
!    of FCN.  Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, algorithm estimates that the relative error in the sum of squares
!       is at most TOL.
!    2, algorithm estimates that the relative error between X and the
!       solution is at most TOL.
!    3, conditions for INFO = 1 and INFO = 2 both hold.
!    4, FVEC is orthogonal to the columns of the jacobian to machine precision.
!    5, number of calls to FCN with IFLAG = 1 has reached 100*(N+1).
!    6, TOL is too small.  No further reduction in the sum of squares is
!       possible.
!    7, TOL is too small.  No further improvement in the approximate
!       solution X is possible.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) diag(n)
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) ftol
   real(kind=8) fvec(m)
   real(kind=8) gtol
   integer(kind=4) info
   integer(kind=4) ipvt(n)
   integer(kind=4) maxfev
   integer(kind=4) mode
   integer(kind=4) nfev
   integer(kind=4) njev
   integer(kind=4) nprint
   real(kind=8) qtf(n)
   real(kind=8) tol
   real(kind=8) x(n)
   real(kind=8) xtol

   info = 0

   if (n <= 0) then
      return
   else if (m < n) then
      return
   else if (ldfjac < m) then
      return
   else if (tol < 0.0d+00) then
      return
   end if

   factor = 100.0d+00
   maxfev = 100*(n + 1)
   ftol = tol
   xtol = tol
   gtol = 0.0d+00
   mode = 1
   nprint = 0

   call lmder(fcn, m, n, x, fvec, fjac, ldfjac, ftol, xtol, gtol, maxfev, &
              diag, mode, factor, nprint, info, nfev, njev, ipvt, qtf)

   if (info == 8) then
      info = 4
   end if

   return

Here is the call graph for this function:

lmdif()

subroutine lmdif	(	external	fcn,
		integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(m)	xdat,
		real(kind=8), dimension(m)	ydat,
		real(kind=8), dimension(m)	fvec,
		real(kind=8)	ftol,
		real(kind=8)	xtol,
		real(kind=8)	gtol,
		integer(kind=4)	maxfev,
		real(kind=8)	epsfcn,
		real(kind=8), dimension(n)	diag,
		integer(kind=4)	mode,
		real(kind=8)	factor,
		integer(kind=4)	nprint,
		integer(kind=4)	info,
		integer(kind=4)	nfev,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		integer(kind=4), dimension(n)	ipvt,
		real(kind=8), dimension(n)	qtf
	)

Definition at line 2944 of file suews_util_minpack.f95.

References fdjac2(), lmpar(), and qrfac().

Referenced by lmdif1().

!*****************************************************************************80
!
!! LMDIF minimizes M functions in N variables by the Levenberg-Marquardt method.
!
!  Discussion:
!
!    LMDIF minimizes the sum of the squares of M nonlinear functions in
!    N variables by a modification of the Levenberg-Marquardt algorithm.
!    The user must provide a subroutine which calculates the functions.
!    The jacobian is then calculated by a forward-difference approximation.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    20 Jul 2017
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!    adapted for AnOHM in SUEWS, Ting Sun, ting.sun@reading.ac.uk
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions.  The routine should have the form:
!      subroutine fcn ( m, n, x, xdat, ydat, fvec, iflag ) ! xdat, ydat added for AnOHM, TS 20 Jul 2017
!      integer ( kind = 4 ) m
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fvec(m),xdat(m),ydat(m)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) M, the number of functions.
!
!    Input, integer ( kind = 4 ) N, the number of variables.
!    N must not exceed M.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.

!    Input, real ( kind = 8 ) XDAT(M), YDAT(M).  On input, XDAT/YDAT must contain
!    observations to construct FVEC(M). ! added for AnOHM, TS 20 Jul 2017
!
!    Output, real ( kind = 8 ) FVEC(M), the functions evaluated at the output X.
!
!    Input, real ( kind = 8 ) FTOL.  Termination occurs when both the actual
!    and predicted relative reductions in the sum of squares are at most FTOL.
!    Therefore, FTOL measures the relative error desired in the sum of
!    squares.  FTOL should be nonnegative.
!
!    Input, real ( kind = 8 ) XTOL.  Termination occurs when the relative error
!    between two consecutive iterates is at most XTOL.  Therefore, XTOL
!    measures the relative error desired in the approximate solution.  XTOL
!    should be nonnegative.
!
!    Input, real ( kind = 8 ) GTOL. termination occurs when the cosine of the
!    angle between FVEC and any column of the jacobian is at most GTOL in
!    absolute value.  Therefore, GTOL measures the orthogonality desired
!    between the function vector and the columns of the jacobian.  GTOL should
!    be nonnegative.
!
!    Input, integer ( kind = 4 ) MAXFEV.  Termination occurs when the number of
!    calls to FCN is at least MAXFEV by the end of an iteration.
!
!    Input, real ( kind = 8 ) EPSFCN, is used in determining a suitable step
!    length for the forward-difference approximation.  This approximation
!    assumes that the relative errors in the functions are of the order of
!    EPSFCN.  If EPSFCN is less than the machine precision, it is assumed that
!    the relative errors in the functions are of the order of the machine
!    precision.
!
!    Input/output, real ( kind = 8 ) DIAG(N).  If MODE = 1, then DIAG is set
!    internally.  If MODE = 2, then DIAG must contain positive entries that
!    serve as multiplicative scale factors for the variables.
!
!    Input, integer ( kind = 4 ) MODE, scaling option.
!    1, variables will be scaled internally.
!    2, scaling is specified by the input DIAG vector.
!
!    Input, real ( kind = 8 ) FACTOR, determines the initial step bound.
!    This bound is set to the product of FACTOR and the euclidean norm of
!    DIAG*X if nonzero, or else to FACTOR itself.  In most cases, FACTOR should
!    lie in the interval (0.1, 100) with 100 the recommended value.
!
!    Input, integer ( kind = 4 ) NPRINT, enables controlled printing of iterates
!    if it is positive.  In this case, FCN is called with IFLAG = 0 at the
!    beginning of the first iteration and every NPRINT iterations thereafter
!    and immediately prior to return, with X and FVEC available
!    for printing.  If NPRINT is not positive, no special calls
!    of FCN with IFLAG = 0 are made.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG. See description
!    of FCN.  Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, both actual and predicted relative reductions in the sum of squares
!       are at most FTOL.
!    2, relative error between two consecutive iterates is at most XTOL.
!    3, conditions for INFO = 1 and INFO = 2 both hold.
!    4, the cosine of the angle between FVEC and any column of the jacobian
!       is at most GTOL in absolute value.
!    5, number of calls to FCN has reached or exceeded MAXFEV.
!    6, FTOL is too small.  No further reduction in the sum of squares
!       is possible.
!    7, XTOL is too small.  No further improvement in the approximate
!       solution X is possible.
!    8, GTOL is too small.  FVEC is orthogonal to the columns of the
!       jacobian to machine precision.
!
!    Output, integer ( kind = 4 ) NFEV, the number of calls to FCN.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), an M by N array.  The upper
!    N by N submatrix of FJAC contains an upper triangular matrix R with
!    diagonal elements of nonincreasing magnitude such that
!
!      P' * ( JAC' * JAC ) * P = R' * R,
!
!    where P is a permutation matrix and JAC is the final calculated jacobian.
!    Column J of P is column IPVT(J) of the identity matrix.  The lower
!    trapezoidal part of FJAC contains information generated during
!    the computation of R.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of FJAC.
!    LDFJAC must be at least M.
!
!    Output, integer ( kind = 4 ) IPVT(N), defines a permutation matrix P such
!    that JAC * P = Q * R, where JAC is the final calculated jacobian, Q is
!    orthogonal (not stored), and R is upper triangular with diagonal
!    elements of nonincreasing magnitude.  Column J of P is column IPVT(J)
!    of the identity matrix.
!
!    Output, real ( kind = 8 ) QTF(N), the first N elements of Q'*FVEC.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) actred
   real(kind=8) delta
   real(kind=8) diag(n)
   real(kind=8) dirder
   real(kind=8) enorm
   real(kind=8) epsfcn
   real(kind=8) epsmch
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fnorm
   real(kind=8) fnorm1
   real(kind=8) ftol
   real(kind=8) :: fvec(m), xdat(m), ydat(m)
   real(kind=8) gnorm
   real(kind=8) gtol
   integer(kind=4) i
   integer(kind=4) iflag
   integer(kind=4) iter
   integer(kind=4) info
   integer(kind=4) ipvt(n)
   integer(kind=4) j
   integer(kind=4) l
   integer(kind=4) maxfev
   integer(kind=4) mode
   integer(kind=4) nfev
   integer(kind=4) nprint
   real(kind=8) par
   logical pivot
   real(kind=8) pnorm
   real(kind=8) prered
   real(kind=8) qtf(n)
   real(kind=8) ratio
   real(kind=8) sum2
   real(kind=8) temp
   real(kind=8) temp1
   real(kind=8) temp2
   real(kind=8) wa1(n)
   real(kind=8) wa2(n)
   real(kind=8) wa3(n)
   real(kind=8) wa4(m)
   real(kind=8) x(n)
   real(kind=8) xnorm
   real(kind=8) xtol

   epsmch = epsilon(epsmch)

   info = 0
   iflag = 0
   nfev = 0

   if (n <= 0) then
      go to 300
   else if (m < n) then
      go to 300
   else if (ldfjac < m) then
      go to 300
   else if (ftol < 0.0d+00) then
      go to 300
   else if (xtol < 0.0d+00) then
      go to 300
   else if (gtol < 0.0d+00) then
      go to 300
   else if (maxfev <= 0) then
      go to 300
   else if (factor <= 0.0d+00) then
      go to 300
   end if

   if (mode == 2) then
      do j = 1, n
         if (diag(j) <= 0.0d+00) then
            go to 300
         end if
      end do
   end if
!
!  Evaluate the function at the starting point and calculate its norm.
!
   iflag = 1
   call fcn(m, n, x, xdat, ydat, fvec, iflag)
   nfev = 1

   if (iflag < 0) then
      go to 300
   end if

   fnorm = enorm(m, fvec)
!
!  Initialize Levenberg-Marquardt parameter and iteration counter.
!
   par = 0.0d+00
   iter = 1
!
!  Beginning of the outer loop.
!
30 continue
!
!  Calculate the jacobian matrix.
!
   iflag = 2
   call fdjac2(fcn, m, n, x, xdat, ydat, fvec, fjac, ldfjac, iflag, epsfcn)
   nfev = nfev + n

   if (iflag < 0) then
      go to 300
   end if
!
!  If requested, call FCN to enable printing of iterates.
!
   if (0 < nprint) then
      iflag = 0
      if (mod(iter - 1, nprint) == 0) then
         call fcn(m, n, x, xdat, ydat, fvec, iflag)
      end if
      if (iflag < 0) then
         go to 300
      end if
   end if
!
!  Compute the QR factorization of the jacobian.
!
   pivot = .true.
   call qrfac(m, n, fjac, ldfjac, pivot, ipvt, n, wa1, wa2)
!
!  On the first iteration and if MODE is 1, scale according
!  to the norms of the columns of the initial jacobian.
!
   if (iter == 1) then

      if (mode /= 2) then
         diag(1:n) = wa2(1:n)
         do j = 1, n
            if (wa2(j) == 0.0d+00) then
               diag(j) = 1.0d+00
            end if
         end do
      end if
!
!  On the first iteration, calculate the norm of the scaled X
!  and initialize the step bound DELTA.
!
      wa3(1:n) = diag(1:n)*x(1:n)
      xnorm = enorm(n, wa3)
      delta = factor*xnorm
      if (delta == 0.0d+00) then
         delta = factor
      end if
   end if
!
!  Form Q' * FVEC and store the first N components in QTF.
!
   wa4(1:m) = fvec(1:m)

   do j = 1, n

      if (fjac(j, j) /= 0.0d+00) then
         sum2 = dot_product(wa4(j:m), fjac(j:m, j))
         temp = -sum2/fjac(j, j)
         wa4(j:m) = wa4(j:m) + fjac(j:m, j)*temp
      end if

      fjac(j, j) = wa1(j)
      qtf(j) = wa4(j)

   end do
!
!  Compute the norm of the scaled gradient.
!
   gnorm = 0.0d+00

   if (fnorm /= 0.0d+00) then

      do j = 1, n

         l = ipvt(j)

         if (wa2(l) /= 0.0d+00) then
            sum2 = 0.0d+00
            do i = 1, j
               sum2 = sum2 + fjac(i, j)*(qtf(i)/fnorm)
            end do
            gnorm = max(gnorm, abs(sum2/wa2(l)))
         end if

      end do

   end if
!
!  Test for convergence of the gradient norm.
!
   if (gnorm <= gtol) then
      info = 4
      go to 300
   end if
!
!  Rescale if necessary.
!
   if (mode /= 2) then
      do j = 1, n
         diag(j) = max(diag(j), wa2(j))
      end do
   end if
!
!  Beginning of the inner loop.
!
200 continue
!
!  Determine the Levenberg-Marquardt parameter.
!
   call lmpar(n, fjac, ldfjac, ipvt, diag, qtf, delta, par, wa1, wa2)
!
!  Store the direction P and X + P.
!  Calculate the norm of P.
!
   wa1(1:n) = -wa1(1:n)
   wa2(1:n) = x(1:n) + wa1(1:n)
   wa3(1:n) = diag(1:n)*wa1(1:n)

   pnorm = enorm(n, wa3)
!
!  On the first iteration, adjust the initial step bound.
!
   if (iter == 1) then
      delta = min(delta, pnorm)
   end if
!
!  Evaluate the function at X + P and calculate its norm.
!
   iflag = 1
   call fcn(m, n, wa2, xdat, ydat, wa4, iflag)
   nfev = nfev + 1
   if (iflag < 0) then
      go to 300
   end if
   fnorm1 = enorm(m, wa4)
!
!  Compute the scaled actual reduction.
!
   if (0.1d+00*fnorm1 < fnorm) then
      actred = 1.0d+00 - (fnorm1/fnorm)**2
   else
      actred = -1.0d+00
   end if
!
!  Compute the scaled predicted reduction and the scaled directional derivative.
!
   do j = 1, n
      wa3(j) = 0.0d+00
      l = ipvt(j)
      temp = wa1(l)
      wa3(1:j) = wa3(1:j) + fjac(1:j, j)*temp
   end do

   temp1 = enorm(n, wa3)/fnorm
   temp2 = (sqrt(par)*pnorm)/fnorm
   prered = temp1**2 + temp2**2/0.5d+00
   dirder = -(temp1**2 + temp2**2)
!
!  Compute the ratio of the actual to the predicted reduction.
!
   ratio = 0.0d+00
   if (prered /= 0.0d+00) then
      ratio = actred/prered
   end if
!
!  Update the step bound.
!
   if (ratio <= 0.25d+00) then

      if (actred >= 0.0d+00) then
         temp = 0.5d+00
      endif

      if (actred < 0.0d+00) then
         temp = 0.5d+00*dirder/(dirder + 0.5d+00*actred)
      end if

      if (0.1d+00*fnorm1 >= fnorm .or. temp < 0.1d+00) then
         temp = 0.1d+00
      end if

      delta = temp*min(delta, pnorm/0.1d+00)
      par = par/temp

   else

      if (par == 0.0d+00 .or. ratio >= 0.75d+00) then
         delta = 2.0d+00*pnorm
         par = 0.5d+00*par
      end if

   end if
!
!  Test for successful iteration.
!

!
!  Successful iteration. update X, FVEC, and their norms.
!
   if (0.0001d+00 <= ratio) then
      x(1:n) = wa2(1:n)
      wa2(1:n) = diag(1:n)*x(1:n)
      fvec(1:m) = wa4(1:m)
      xnorm = enorm(n, wa2)
      fnorm = fnorm1
      iter = iter + 1
   end if
!
!  Tests for convergence.
!
   if (abs(actred) <= ftol .and. prered <= ftol &
       .and. 0.5d+00*ratio <= 1.0d+00) then
      info = 1
   end if

   if (delta <= xtol*xnorm) then
      info = 2
   end if

   if (abs(actred) <= ftol .and. prered <= ftol &
       .and. 0.5d+00*ratio <= 1.0d+00 .and. info == 2) info = 3

   if (info /= 0) then
      go to 300
   end if
!
!  Tests for termination and stringent tolerances.
!
   if (maxfev <= nfev) then
      info = 5
   end if

   if (abs(actred) <= epsmch .and. prered <= epsmch &
       .and. 0.5d+00*ratio <= 1.0d+00) then
      info = 6
   end if

   if (delta <= epsmch*xnorm) then
      info = 7
   end if

   if (gnorm <= epsmch) then
      info = 8
   end if

   if (info /= 0) then
      go to 300
   end if
!
!  End of the inner loop.  Repeat if iteration unsuccessful.
!
   if (ratio < 0.0001d+00) then
      go to 200
   end if
!
!  End of the outer loop.
!
   go to 30

300 continue
!
!  Termination, either normal or user imposed.
!
   if (iflag < 0) then
      info = iflag
   end if

   iflag = 0

   if (0 < nprint) then
      call fcn(m, n, x, xdat, ydat, fvec, iflag)
   end if

   return

Here is the call graph for this function:

Here is the caller graph for this function:

lmdif1()

subroutine lmdif1	(	external	fcn,
		integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(m)	xdat,
		real(kind=8), dimension(m)	ydat,
		real(kind=8), dimension(m)	fvec,
		real(kind=8)	tol,
		integer(kind=4)	info
	)

Definition at line 3478 of file suews_util_minpack.f95.

References lmdif().

Referenced by anohm_module::anohm_shapefit().

!*****************************************************************************80
!
!! LMDIF1 minimizes M functions in N variables using Levenberg-Marquardt method.
!
!  Discussion:
!
!    LMDIF1 minimizes the sum of the squares of M nonlinear functions in
!    N variables by a modification of the Levenberg-Marquardt algorithm.
!    This is done by using the more general least-squares solver LMDIF.
!    The user must provide a subroutine which calculates the functions.
!    The jacobian is then calculated by a forward-difference approximation.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    20 Jul 2017
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!    adapted for AnOHM in SUEWS, Ting Sun, ting.sun@reading.ac.uk
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions.  The routine should have the form:
!      subroutine fcn ( m, n, x, xdat, ydat, fvec, iflag ) ! xdat, ydat added for AnOHM, TS 20 Jul 2017
!      integer ( kind = 4 ) m
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fvec(m),xdat(m),ydat(m)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    To terminate the algorithm, FCN may set IFLAG negative on return.
!
!    Input, integer ( kind = 4 ) M, the number of functions.
!
!    Input, integer ( kind = 4 ) N, the number of variables.
!    N must not exceed M.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.

!    Input, real ( kind = 8 ) XDAT(M), YDAT(M).  On input, XDAT/YDAT must contain
!    observations to construct FVEC(M). ! added for AnOHM, TS 20 Jul 2017
!
!    Output, real ( kind = 8 ) FVEC(M), the functions evaluated at the output X.
!
!    Input, real ( kind = 8 ) TOL.  Termination occurs when the algorithm
!    estimates either that the relative error in the sum of squares is at
!    most TOL or that the relative error between X and the solution is at
!    most TOL.  TOL should be nonnegative.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG. See description
!    of FCN.  Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, algorithm estimates that the relative error in the sum of squares
!       is at most TOL.
!    2, algorithm estimates that the relative error between X and the
!       solution is at most TOL.
!    3, conditions for INFO = 1 and INFO = 2 both hold.
!    4, FVEC is orthogonal to the columns of the jacobian to machine precision.
!    5, number of calls to FCN has reached or exceeded 200*(N+1).
!    6, TOL is too small.  No further reduction in the sum of squares
!       is possible.
!    7, TOL is too small.  No further improvement in the approximate
!       solution X is possible.
!
   implicit none

   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) diag(n)
   real(kind=8) epsfcn
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(m, n)
   real(kind=8) ftol
   real(kind=8) ::fvec(m), xdat(m), ydat(m)
   real(kind=8) gtol
   integer(kind=4) info
   integer(kind=4) ipvt(n)
   integer(kind=4) ldfjac
   integer(kind=4) maxfev
   integer(kind=4) mode
   integer(kind=4) nfev
   integer(kind=4) nprint
   real(kind=8) qtf(n)
   real(kind=8) tol
   real(kind=8) x(n)
   real(kind=8) xtol

   info = 0

   if (n <= 0) then
      return
   else if (m < n) then
      return
   else if (tol < 0.0d+00) then
      return
   end if

   factor = 100.0d+00
   maxfev = 200*(n + 1)
   ftol = tol
   xtol = tol
   gtol = 0.0d+00
   epsfcn = 0.0d+00
   mode = 1
   nprint = 0
   ldfjac = m
! print*, 'x in limdif1',x
   call lmdif(fcn, m, n, x, xdat, ydat, fvec, ftol, xtol, gtol, maxfev, epsfcn, &
              diag, mode, factor, nprint, info, nfev, fjac, ldfjac, ipvt, qtf)

   if (info == 8) then
      info = 4
   end if

   return

Here is the call graph for this function:

Here is the caller graph for this function:

lmpar()

subroutine lmpar	(	integer(kind=4)	n,
		real(kind=8), dimension(ldr, n)	r,
		integer(kind=4)	ldr,
		integer(kind=4), dimension(n)	ipvt,
		real(kind=8), dimension(n)	diag,
		real(kind=8), dimension(n)	qtb,
		real(kind=8)	delta,
		real(kind=8)	par,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(n)	sdiag
	)

Definition at line 3618 of file suews_util_minpack.f95.

References qrsolv().

Referenced by lmder(), lmdif(), and lmstr().

!*****************************************************************************80
!
!! LMPAR computes a parameter for the Levenberg-Marquardt method.
!
!  Discussion:
!
!    Given an M by N matrix A, an N by N nonsingular diagonal
!    matrix D, an M-vector B, and a positive number DELTA,
!    the problem is to determine a value for the parameter
!    PAR such that if X solves the system
!
!      A*X = B,
!      sqrt ( PAR ) * D * X = 0,
!
!    in the least squares sense, and DXNORM is the euclidean
!    norm of D*X, then either PAR is zero and
!
!      ( DXNORM - DELTA ) <= 0.1 * DELTA,
!
!    or PAR is positive and
!
!      abs ( DXNORM - DELTA) <= 0.1 * DELTA.
!
!    This subroutine completes the solution of the problem
!    if it is provided with the necessary information from the
!    QR factorization, with column pivoting, of A.  That is, if
!    A*P = Q*R, where P is a permutation matrix, Q has orthogonal
!    columns, and R is an upper triangular matrix with diagonal
!    elements of nonincreasing magnitude, then LMPAR expects
!    the full upper triangle of R, the permutation matrix P,
!    and the first N components of Q'*B.  On output
!    LMPAR also provides an upper triangular matrix S such that
!
!      P' * ( A' * A + PAR * D * D ) * P = S'* S.
!
!    S is employed within LMPAR and may be of separate interest.
!
!    Only a few iterations are generally needed for convergence
!    of the algorithm.  If, however, the limit of 10 iterations
!    is reached, then the output PAR will contain the best
!    value obtained so far.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    24 January 2014
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) N, the order of R.
!
!    Input/output, real ( kind = 8 ) R(LDR,N),the N by N matrix.  The full
!    upper triangle must contain the full upper triangle of the matrix R.
!    On output the full upper triangle is unaltered, and the strict lower
!    triangle contains the strict upper triangle (transposed) of the upper
!    triangular matrix S.
!
!    Input, integer ( kind = 4 ) LDR, the leading dimension of R.  LDR must be
!    no less than N.
!
!    Input, integer ( kind = 4 ) IPVT(N), defines the permutation matrix P
!    such that A*P = Q*R.  Column J of P is column IPVT(J) of the
!    identity matrix.
!
!    Input, real ( kind = 8 ) DIAG(N), the diagonal elements of the matrix D.
!
!    Input, real ( kind = 8 ) QTB(N), the first N elements of the vector Q'*B.
!
!    Input, real ( kind = 8 ) DELTA, an upper bound on the euclidean norm
!    of D*X.  DELTA should be positive.
!
!    Input/output, real ( kind = 8 ) PAR.  On input an initial estimate of the
!    Levenberg-Marquardt parameter.  On output the final estimate.
!    PAR should be nonnegative.
!
!    Output, real ( kind = 8 ) X(N), the least squares solution of the system
!    A*X = B, sqrt(PAR)*D*X = 0, for the output value of PAR.
!
!    Output, real ( kind = 8 ) SDIAG(N), the diagonal elements of the upper
!    triangular matrix S.
!
   implicit none

   integer(kind=4) ldr
   integer(kind=4) n

   real(kind=8) delta
   real(kind=8) diag(n)
   real(kind=8) dwarf
   real(kind=8) dxnorm
   real(kind=8) enorm
   real(kind=8) gnorm
   real(kind=8) fp
   ! integer ( kind = 4 ) i
   integer(kind=4) ipvt(n)
   integer(kind=4) iter
   integer(kind=4) j
   integer(kind=4) k
   integer(kind=4) l
   integer(kind=4) nsing
   real(kind=8) par
   real(kind=8) parc
   real(kind=8) parl
   real(kind=8) paru
   ! real ( kind = 8 ) qnorm
   real(kind=8) qtb(n)
   real(kind=8) r(ldr, n)
   real(kind=8) sdiag(n)
   real(kind=8) sum2
   real(kind=8) temp
   real(kind=8) wa1(n)
   real(kind=8) wa2(n)
   real(kind=8) x(n)
!
!  DWARF is the smallest positive magnitude.
!
   dwarf = tiny(dwarf)
!
!  Compute and store in X the Gauss-Newton direction.
!
!  If the jacobian is rank-deficient, obtain a least squares solution.
!
   nsing = n

   do j = 1, n
      wa1(j) = qtb(j)
      if (r(j, j) == 0.0d+00 .and. nsing == n) then
         nsing = j - 1
      end if
      if (nsing < n) then
         wa1(j) = 0.0d+00
      end if
   end do

   do k = 1, nsing
      j = nsing - k + 1
      wa1(j) = wa1(j)/r(j, j)
      temp = wa1(j)
      wa1(1:j - 1) = wa1(1:j - 1) - r(1:j - 1, j)*temp
   end do

   do j = 1, n
      l = ipvt(j)
      x(l) = wa1(j)
   end do
!
!  Initialize the iteration counter.
!  Evaluate the function at the origin, and test
!  for acceptance of the Gauss-Newton direction.
!
   iter = 0
   wa2(1:n) = diag(1:n)*x(1:n)
   dxnorm = enorm(n, wa2)
   fp = dxnorm - delta

   if (fp <= 0.1d+00*delta) then
      if (iter == 0) then
         par = 0.0d+00
      end if
      return
   end if
!
!  If the jacobian is not rank deficient, the Newton
!  step provides a lower bound, PARL, for the zero of
!  the function.
!
!  Otherwise set this bound to zero.
!
   parl = 0.0d+00

   if (n <= nsing) then

      do j = 1, n
         l = ipvt(j)
         wa1(j) = diag(l)*(wa2(l)/dxnorm)
      end do

      do j = 1, n
         sum2 = dot_product(wa1(1:j - 1), r(1:j - 1, j))
         wa1(j) = (wa1(j) - sum2)/r(j, j)
      end do

      temp = enorm(n, wa1)
      parl = ((fp/delta)/temp)/temp

   end if
!
!  Calculate an upper bound, PARU, for the zero of the function.
!
   do j = 1, n
      sum2 = dot_product(qtb(1:j), r(1:j, j))
      l = ipvt(j)
      wa1(j) = sum2/diag(l)
   end do

   gnorm = enorm(n, wa1)
   paru = gnorm/delta

   if (paru == 0.0d+00) then
      paru = dwarf/min(delta, 0.1d+00)
   end if
!
!  If the input PAR lies outside of the interval (PARL, PARU),
!  set PAR to the closer endpoint.
!
   par = max(par, parl)
   par = min(par, paru)
   if (par == 0.0d+00) then
      par = gnorm/dxnorm
   end if
!
!  Beginning of an iteration.
!
   do

      iter = iter + 1
!
!  Evaluate the function at the current value of PAR.
!
      if (par == 0.0d+00) then
         par = max(dwarf, 0.001d+00*paru)
      end if

      wa1(1:n) = sqrt(par)*diag(1:n)

      call qrsolv(n, r, ldr, ipvt, wa1, qtb, x, sdiag)

      wa2(1:n) = diag(1:n)*x(1:n)
      dxnorm = enorm(n, wa2)
      temp = fp
      fp = dxnorm - delta
!
!  If the function is small enough, accept the current value of PAR.
!
      if (abs(fp) <= 0.1d+00*delta) then
         exit
      end if
!
!  Test for the exceptional cases where PARL
!  is zero or the number of iterations has reached 10.
!
      if (parl == 0.0d+00 .and. fp <= temp .and. temp < 0.0d+00) then
         exit
      else if (iter == 10) then
         exit
      end if
!
!  Compute the Newton correction.
!
      do j = 1, n
         l = ipvt(j)
         wa1(j) = diag(l)*(wa2(l)/dxnorm)
      end do

      do j = 1, n
         wa1(j) = wa1(j)/sdiag(j)
         temp = wa1(j)
         wa1(j + 1:n) = wa1(j + 1:n) - r(j + 1:n, j)*temp
      end do

      temp = enorm(n, wa1)
      parc = ((fp/delta)/temp)/temp
!
!  Depending on the sign of the function, update PARL or PARU.
!
      if (0.0d+00 < fp) then
         parl = max(parl, par)
      else if (fp < 0.0d+00) then
         paru = min(paru, par)
      end if
!
!  Compute an improved estimate for PAR.
!
      par = max(parl, par + parc)
!
!  End of an iteration.
!
   end do
!
!  Termination.
!
   if (iter == 0) then
      par = 0.0d+00
   end if

   return

Here is the call graph for this function:

Here is the caller graph for this function:

lmstr()

subroutine lmstr	(	external	fcn,
		integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(m)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		real(kind=8)	ftol,
		real(kind=8)	xtol,
		real(kind=8)	gtol,
		integer(kind=4)	maxfev,
		real(kind=8), dimension(n)	diag,
		integer(kind=4)	mode,
		real(kind=8)	factor,
		integer(kind=4)	nprint,
		integer(kind=4)	info,
		integer(kind=4)	nfev,
		integer(kind=4)	njev,
		integer(kind=4), dimension(n)	ipvt,
		real(kind=8), dimension(n)	qtf
	)

Definition at line 3923 of file suews_util_minpack.f95.

References lmpar(), qrfac(), and rwupdt().

Referenced by lmstr1().

!*****************************************************************************80
!
!! LMSTR minimizes M functions in N variables using Levenberg-Marquardt method.
!
!  Discussion:
!
!    LMSTR minimizes the sum of the squares of M nonlinear functions in
!    N variables by a modification of the Levenberg-Marquardt algorithm
!    which uses minimal storage.
!
!    The user must provide a subroutine which calculates the functions and
!    the rows of the jacobian.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions and the rows of the jacobian.
!    FCN should have the form:
!      subroutine fcn ( m, n, x, fvec, fjrow, iflag )
!      integer ( kind = 4 ) m
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fjrow(n)
!      real ( kind = 8 ) fvec(m)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    If the input value of IFLAG is I > 1, calculate the (I-1)-st row of
!    the jacobian at X, and return this vector in FJROW.
!    To terminate the algorithm, set the output value of IFLAG negative.
!
!    Input, integer ( kind = 4 ) M, the number of functions.
!
!    Input, integer ( kind = 4 ) N, the number of variables.
!    N must not exceed M.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.
!
!    Output, real ( kind = 8 ) FVEC(M), the functions evaluated at the output X.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), an N by N array.  The upper
!    triangle of FJAC contains an upper triangular matrix R such that
!
!      P' * ( JAC' * JAC ) * P = R' * R,
!
!    where P is a permutation matrix and JAC is the final calculated jacobian.
!    Column J of P is column IPVT(J) of the identity matrix.  The lower
!    triangular part of FJAC contains information generated during
!    the computation of R.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of FJAC.
!    LDFJAC must be at least N.
!
!    Input, real ( kind = 8 ) FTOL.  Termination occurs when both the actual and
!    predicted relative reductions in the sum of squares are at most FTOL.
!    Therefore, FTOL measures the relative error desired in the sum of
!    squares.  FTOL should be nonnegative.
!
!    Input, real ( kind = 8 ) XTOL.  Termination occurs when the relative error
!    between two consecutive iterates is at most XTOL.  XTOL should be
!    nonnegative.
!
!    Input, real ( kind = 8 ) GTOL. termination occurs when the cosine of the
!    angle between FVEC and any column of the jacobian is at most GTOL in
!    absolute value.  Therefore, GTOL measures the orthogonality desired
!    between the function vector and the columns of the jacobian.  GTOL should
!    be nonnegative.
!
!    Input, integer ( kind = 4 ) MAXFEV.  Termination occurs when the number
!    of calls to FCN with IFLAG = 1 is at least MAXFEV by the end of
!    an iteration.
!
!    Input/output, real ( kind = 8 ) DIAG(N).  If MODE = 1, then DIAG is set
!    internally.  If MODE = 2, then DIAG must contain positive entries that
!    serve as multiplicative scale factors for the variables.
!
!    Input, integer ( kind = 4 ) MODE, scaling option.
!    1, variables will be scaled internally.
!    2, scaling is specified by the input DIAG vector.
!
!    Input, real ( kind = 8 ) FACTOR, determines the initial step bound.  This
!    bound is set to the product of FACTOR and the euclidean norm of DIAG*X if
!    nonzero, or else to FACTOR itself.  In most cases, FACTOR should lie
!    in the interval (0.1, 100) with 100 the recommended value.
!
!    Input, integer ( kind = 4 ) NPRINT, enables controlled printing of iterates
!    if it is positive.  In this case, FCN is called with IFLAG = 0 at the
!    beginning of the first iteration and every NPRINT iterations thereafter
!    and immediately prior to return, with X and FVEC available
!    for printing.  If NPRINT is not positive, no special calls
!    of FCN with IFLAG = 0 are made.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG. See the
!    description of FCN.  Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, both actual and predicted relative reductions in the sum of squares
!       are at most FTOL.
!    2, relative error between two consecutive iterates is at most XTOL.
!    3, conditions for INFO = 1 and INFO = 2 both hold.
!    4, the cosine of the angle between FVEC and any column of the jacobian
!       is at most GTOL in absolute value.
!    5, number of calls to FCN with IFLAG = 1 has reached MAXFEV.
!    6, FTOL is too small.  No further reduction in the sum of squares is
!       possible.
!    7, XTOL is too small.  No further improvement in the approximate
!       solution X is possible.
!    8, GTOL is too small.  FVEC is orthogonal to the columns of the
!       jacobian to machine precision.
!
!    Output, integer ( kind = 4 ) NFEV, the number of calls to FCN
!    with IFLAG = 1.
!
!    Output, integer ( kind = 4 ) NJEV, the number of calls to FCN
!    with IFLAG = 2.
!
!    Output, integer ( kind = 4 ) IPVT(N), defines a permutation matrix P such
!    that JAC * P = Q * R, where JAC is the final calculated jacobian, Q is
!    orthogonal (not stored), and R is upper triangular.
!    Column J of P is column IPVT(J) of the identity matrix.
!
!    Output, real ( kind = 8 ) QTF(N), contains the first N elements of Q'*FVEC.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) actred
   real(kind=8) delta
   real(kind=8) diag(n)
   real(kind=8) dirder
   real(kind=8) enorm
   real(kind=8) epsmch
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) fnorm
   real(kind=8) fnorm1
   real(kind=8) ftol
   real(kind=8) fvec(m)
   real(kind=8) gnorm
   real(kind=8) gtol
   integer(kind=4) i
   integer(kind=4) iflag
   integer(kind=4) info
   integer(kind=4) ipvt(n)
   integer(kind=4) iter
   integer(kind=4) j
   integer(kind=4) l
   integer(kind=4) maxfev
   integer(kind=4) mode
   integer(kind=4) nfev
   integer(kind=4) njev
   integer(kind=4) nprint
   real(kind=8) par
   logical pivot
   real(kind=8) pnorm
   real(kind=8) prered
   real(kind=8) qtf(n)
   real(kind=8) ratio
   logical sing
   real(kind=8) sum2
   real(kind=8) temp
   real(kind=8) temp1
   real(kind=8) temp2
   real(kind=8) wa1(n)
   real(kind=8) wa2(n)
   real(kind=8) wa3(n)
   real(kind=8) wa4(m)
   real(kind=8) x(n)
   real(kind=8) xnorm
   real(kind=8) xtol

   epsmch = epsilon(epsmch)

   info = 0
   iflag = 0
   nfev = 0
   njev = 0
   xnorm = 0
!
!  Check the input parameters for errors.
!
   if (n <= 0) then
      go to 340
   else if (m < n) then
      go to 340
   else if (ldfjac < n) then
      go to 340
   else if (ftol < 0.0d+00) then
      go to 340
   else if (xtol < 0.0d+00) then
      go to 340
   else if (gtol < 0.0d+00) then
      go to 340
   else if (maxfev <= 0) then
      go to 340
   else if (factor <= 0.0d+00) then
      go to 340
   end if

   if (mode == 2) then
      do j = 1, n
         if (diag(j) <= 0.0d+00) then
            go to 340
         end if
      end do
   end if
!
!  Evaluate the function at the starting point and calculate its norm.
!
   iflag = 1
   call fcn(m, n, x, fvec, wa3, iflag)
   nfev = 1

   if (iflag < 0) then
      go to 340
   end if

   fnorm = enorm(m, fvec)
!
!  Initialize Levenberg-Marquardt parameter and iteration counter.
!
   par = 0.0d+00
   iter = 1
!
!  Beginning of the outer loop.
!
30 continue
!
!  If requested, call FCN to enable printing of iterates.
!
   if (0 < nprint) then
      iflag = 0
      if (mod(iter - 1, nprint) == 0) then
         call fcn(m, n, x, fvec, wa3, iflag)
      end if
      if (iflag < 0) then
         go to 340
      end if
   end if
!
!  Compute the QR factorization of the jacobian matrix calculated one row
!  at a time, while simultaneously forming Q'* FVEC and storing
!  the first N components in QTF.
!
   qtf(1:n) = 0.0d+00
   fjac(1:n, 1:n) = 0.0d+00
   iflag = 2

   do i = 1, m
      call fcn(m, n, x, fvec, wa3, iflag)
      if (iflag < 0) then
         go to 340
      end if
      temp = fvec(i)
      call rwupdt(n, fjac, ldfjac, wa3, qtf, temp, wa1, wa2)
      iflag = iflag + 1
   end do

   njev = njev + 1
!
!  If the jacobian is rank deficient, call QRFAC to
!  reorder its columns and update the components of QTF.
!
   sing = .false.
   do j = 1, n
      if (fjac(j, j) == 0.0d+00) then
         sing = .true.
      end if
      ipvt(j) = j
      wa2(j) = enorm(j, fjac(1, j))
   end do

   if (sing) then

      pivot = .true.
      call qrfac(n, n, fjac, ldfjac, pivot, ipvt, n, wa1, wa2)

      do j = 1, n

         if (fjac(j, j) /= 0.0d+00) then

            sum2 = dot_product(qtf(j:n), fjac(j:n, j))
            temp = -sum2/fjac(j, j)
            qtf(j:n) = qtf(j:n) + fjac(j:n, j)*temp

         end if

         fjac(j, j) = wa1(j)

      end do

   end if
!
!  On the first iteration
!    if mode is 1,
!      scale according to the norms of the columns of the initial jacobian.
!    calculate the norm of the scaled X,
!    initialize the step bound delta.
!
   if (iter == 1) then

      if (mode /= 2) then

         diag(1:n) = wa2(1:n)
         do j = 1, n
            if (wa2(j) == 0.0d+00) then
               diag(j) = 1.0d+00
            end if
         end do

      end if

      wa3(1:n) = diag(1:n)*x(1:n)
      xnorm = enorm(n, wa3)
      delta = factor*xnorm
      if (delta == 0.0d+00) then
         delta = factor
      end if

   end if
!
!  Compute the norm of the scaled gradient.
!
   gnorm = 0.0d+00

   if (fnorm /= 0.0d+00) then

      do j = 1, n
         l = ipvt(j)
         if (wa2(l) /= 0.0d+00) then
            sum2 = dot_product(qtf(1:j), fjac(1:j, j))/fnorm
            gnorm = max(gnorm, abs(sum2/wa2(l)))
         end if
      end do

   end if
!
!  Test for convergence of the gradient norm.
!
   if (gnorm <= gtol) then
      info = 4
      go to 340
   end if
!
!  Rescale if necessary.
!
   if (mode /= 2) then
      do j = 1, n
         diag(j) = max(diag(j), wa2(j))
      end do
   end if
!
!  Beginning of the inner loop.
!
240 continue
!
!  Determine the Levenberg-Marquardt parameter.
!
   call lmpar(n, fjac, ldfjac, ipvt, diag, qtf, delta, par, wa1, wa2)
!
!  Store the direction P and X + P.
!  Calculate the norm of P.
!
   wa1(1:n) = -wa1(1:n)
   wa2(1:n) = x(1:n) + wa1(1:n)
   wa3(1:n) = diag(1:n)*wa1(1:n)
   pnorm = enorm(n, wa3)
!
!  On the first iteration, adjust the initial step bound.
!
   if (iter == 1) then
      delta = min(delta, pnorm)
   end if
!
!  Evaluate the function at X + P and calculate its norm.
!
   iflag = 1
   call fcn(m, n, wa2, wa4, wa3, iflag)
   nfev = nfev + 1
   if (iflag < 0) then
      go to 340
   end if
   fnorm1 = enorm(m, wa4)
!
!  Compute the scaled actual reduction.
!
   if (0.1d+00*fnorm1 < fnorm) then
      actred = 1.0d+00 - (fnorm1/fnorm)**2
   else
      actred = -1.0d+00
   end if
!
!  Compute the scaled predicted reduction and
!  the scaled directional derivative.
!
   do j = 1, n
      wa3(j) = 0.0d+00
      l = ipvt(j)
      temp = wa1(l)
      wa3(1:j) = wa3(1:j) + fjac(1:j, j)*temp
   end do

   temp1 = enorm(n, wa3)/fnorm
   temp2 = (sqrt(par)*pnorm)/fnorm
   prered = temp1**2 + temp2**2/0.5d+00
   dirder = -(temp1**2 + temp2**2)
!
!  Compute the ratio of the actual to the predicted reduction.
!
   if (prered /= 0.0d+00) then
      ratio = actred/prered
   else
      ratio = 0.0d+00
   end if
!
!  Update the step bound.
!
   if (ratio <= 0.25d+00) then

      if (actred >= 0.0d+00) then
         temp = 0.5d+00
      else
         temp = 0.5d+00*dirder/(dirder + 0.5d+00*actred)
      end if

      if (0.1d+00*fnorm1 >= fnorm .or. temp < 0.1d+00) then
         temp = 0.1d+00
      end if

      delta = temp*min(delta, pnorm/0.1d+00)
      par = par/temp

   else

      if (par == 0.0d+00 .or. ratio >= 0.75d+00) then
         delta = pnorm/0.5d+00
         par = 0.5d+00*par
      end if

   end if
!
!  Test for successful iteration.
!
   if (ratio >= 0.0001d+00) then
      x(1:n) = wa2(1:n)
      wa2(1:n) = diag(1:n)*x(1:n)
      fvec(1:m) = wa4(1:m)
      xnorm = enorm(n, wa2)
      fnorm = fnorm1
      iter = iter + 1
   end if
!
!  Tests for convergence, termination and stringent tolerances.
!
   if (abs(actred) <= ftol .and. prered <= ftol &
       .and. 0.5d+00*ratio <= 1.0d+00) then
      info = 1
   end if

   if (delta <= xtol*xnorm) then
      info = 2
   end if

   if (abs(actred) <= ftol .and. prered <= ftol &
       .and. 0.5d+00*ratio <= 1.0d+00 .and. info == 2) then
      info = 3
   end if

   if (info /= 0) then
      go to 340
   end if

   if (nfev >= maxfev) then
      info = 5
   end if

   if (abs(actred) <= epsmch .and. prered <= epsmch &
       .and. 0.5d+00*ratio <= 1.0d+00) then
      info = 6
   end if

   if (delta <= epsmch*xnorm) then
      info = 7
   end if

   if (gnorm <= epsmch) then
      info = 8
   end if

   if (info /= 0) then
      go to 340
   end if
!
!  End of the inner loop.  Repeat if iteration unsuccessful.
!
   if (ratio < 0.0001d+00) then
      go to 240
   end if
!
!  End of the outer loop.
!
   go to 30

340 continue
!
!  Termination, either normal or user imposed.
!
   if (iflag < 0) then
      info = iflag
   end if

   iflag = 0

   if (0 < nprint) then
      call fcn(m, n, x, fvec, wa3, iflag)
   end if

   return

Here is the call graph for this function:

Here is the caller graph for this function:

lmstr1()

subroutine lmstr1	(	external	fcn,
		integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(m)	fvec,
		real(kind=8), dimension(ldfjac, n)	fjac,
		integer(kind=4)	ldfjac,
		real(kind=8)	tol,
		integer(kind=4)	info
	)

Definition at line 4472 of file suews_util_minpack.f95.

References lmstr().

!*****************************************************************************80
!
!! LMSTR1 minimizes M functions in N variables using Levenberg-Marquardt method.
!
!  Discussion:
!
!    LMSTR1 minimizes the sum of the squares of M nonlinear functions in
!    N variables by a modification of the Levenberg-Marquardt algorithm
!    which uses minimal storage.
!
!    This is done by using the more general least-squares solver
!    LMSTR.  The user must provide a subroutine which calculates
!    the functions and the rows of the jacobian.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    19 August 2016
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, external FCN, the name of the user-supplied subroutine which
!    calculates the functions and the rows of the jacobian.
!    FCN should have the form:
!      subroutine fcn ( m, n, x, fvec, fjrow, iflag )
!      integer ( kind = 4 ) m
!      integer ( kind = 4 ) n
!      real ( kind = 8 ) fjrow(n)
!      real ( kind = 8 ) fvec(m)
!      integer ( kind = 4 ) iflag
!      real ( kind = 8 ) x(n)
!    If IFLAG = 0 on input, then FCN is only being called to allow the user
!    to print out the current iterate.
!    If IFLAG = 1 on input, FCN should calculate the functions at X and
!    return this vector in FVEC.
!    If the input value of IFLAG is I > 1, calculate the (I-1)-st row of
!    the jacobian at X, and return this vector in FJROW.
!    To terminate the algorithm, set the output value of IFLAG negative.
!
!    Input, integer ( kind = 4 ) M, the number of functions.
!
!    Input, integer ( kind = 4 ) N, the number of variables.
!    N must not exceed M.
!
!    Input/output, real ( kind = 8 ) X(N).  On input, X must contain an initial
!    estimate of the solution vector.  On output X contains the final
!    estimate of the solution vector.
!
!    Output, real ( kind = 8 ) FVEC(M), the functions evaluated at the output X.
!
!    Output, real ( kind = 8 ) FJAC(LDFJAC,N), an N by N array.  The upper
!    triangle contains an upper triangular matrix R such that
!
!      P' * ( JAC' * JAC ) * P = R' * R,
!
!    where P is a permutation matrix and JAC is the final calculated
!    jacobian.  Column J of P is column IPVT(J) of the identity matrix.
!    The lower triangular part of FJAC contains information generated
!    during the computation of R.
!
!    Input, integer ( kind = 4 ) LDFJAC, the leading dimension of FJAC.
!    LDFJAC must be at least N.
!
!    Input, real ( kind = 8 ) TOL. Termination occurs when the algorithm
!    estimates either that the relative error in the sum of squares is at
!    most TOL or that the relative error between X and the solution is at
!    most TOL.  TOL should be nonnegative.
!
!    Output, integer ( kind = 4 ) INFO, error flag.  If the user has terminated
!    execution, INFO is set to the (negative) value of IFLAG. See description
!    of FCN.  Otherwise, INFO is set as follows:
!    0, improper input parameters.
!    1, algorithm estimates that the relative error in the sum of squares
!       is at most TOL.
!    2, algorithm estimates that the relative error between X and the
!       solution is at most TOL.
!    3, conditions for INFO = 1 and INFO = 2 both hold.
!    4, FVEC is orthogonal to the columns of the jacobian to machine precision.
!    5, number of calls to FCN with IFLAG = 1 has reached 100*(N+1).
!    6, TOL is too small.  No further reduction in the sum of squares
!       is possible.
!    7, TOL is too small.  No further improvement in the approximate
!       solution X is possible.
!
   implicit none

   integer(kind=4) ldfjac
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) diag(n)
   real(kind=8) factor
   external fcn
   real(kind=8) fjac(ldfjac, n)
   real(kind=8) ftol
   real(kind=8) fvec(m)
   real(kind=8) gtol
   integer(kind=4) info
   integer(kind=4) ipvt(n)
   integer(kind=4) maxfev
   integer(kind=4) mode
   integer(kind=4) nfev
   integer(kind=4) njev
   integer(kind=4) nprint
   real(kind=8) qtf(n)
   real(kind=8) tol
   real(kind=8) x(n)
   real(kind=8) xtol

   if (n <= 0) then
      info = 0
      return
   end if

   if (m < n) then
      info = 0
      return
   end if

   if (ldfjac < n) then
      info = 0
      return
   end if

   if (tol < 0.0d+00) then
      info = 0
      return
   end if

   fvec(1:n) = 0.0d+00
   fjac(1:ldfjac, 1:n) = 0.0d+00
   ftol = tol
   xtol = tol
   gtol = 0.0d+00
   maxfev = 100*(n + 1)
   diag(1:n) = 0.0d+00
   mode = 1
   factor = 100.0d+00
   nprint = 0
   info = 0
   nfev = 0
   njev = 0
   ipvt(1:n) = 0
   qtf(1:n) = 0.0d+00

   call lmstr(fcn, m, n, x, fvec, fjac, ldfjac, ftol, xtol, gtol, maxfev, &
              diag, mode, factor, nprint, info, nfev, njev, ipvt, qtf)

   if (info == 8) then
      info = 4
   end if

   return

Here is the call graph for this function:

qform()

subroutine qform	(	integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(ldq, m)	q,
		integer(kind=4)	ldq
	)

Definition at line 4643 of file suews_util_minpack.f95.

Referenced by hybrd(), and hybrj().

!*****************************************************************************80
!
!! QFORM produces the explicit QR factorization of a matrix.
!
!  Discussion:
!
!    The QR factorization of a matrix is usually accumulated in implicit
!    form, that is, as a series of orthogonal transformations of the
!    original matrix.  This routine carries out those transformations,
!    to explicitly exhibit the factorization constructed by QRFAC.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) M, is a positive integer input variable set
!    to the number of rows of A and the order of Q.
!
!    Input, integer ( kind = 4 ) N, is a positive integer input variable set
!    to the number of columns of A.
!
!    Input/output, real ( kind = 8 ) Q(LDQ,M).  Q is an M by M array.
!    On input the full lower trapezoid in the first min(M,N) columns of Q
!    contains the factored form.
!    On output, Q has been accumulated into a square matrix.
!
!    Input, integer ( kind = 4 ) LDQ, is a positive integer input variable
!    not less than M which specifies the leading dimension of the array Q.
!
   implicit none

   integer(kind=4) ldq
   integer(kind=4) m
   integer(kind=4) n

   integer(kind=4) j
   integer(kind=4) k
   integer(kind=4) l
   integer(kind=4) minmn
   real(kind=8) q(ldq, m)
   real(kind=8) temp
   real(kind=8) wa(m)

   minmn = min(m, n)

   do j = 2, minmn
      q(1:j - 1, j) = 0.0d+00
   end do
!
!  Initialize remaining columns to those of the identity matrix.
!
   q(1:m, n + 1:m) = 0.0d+00

   do j = n + 1, m
      q(j, j) = 1.0d+00
   end do
!
!  Accumulate Q from its factored form.
!
   do l = 1, minmn

      k = minmn - l + 1

      wa(k:m) = q(k:m, k)

      q(k:m, k) = 0.0d+00
      q(k, k) = 1.0d+00

      if (wa(k) /= 0.0d+00) then

         do j = k, m
            temp = dot_product(wa(k:m), q(k:m, j))/wa(k)
            q(k:m, j) = q(k:m, j) - temp*wa(k:m)
         end do

      end if

   end do

   return

Here is the caller graph for this function:

qrfac()

subroutine qrfac	(	integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(lda, n)	a,
		integer(kind=4)	lda,
		logical	pivot,
		integer(kind=4), dimension(lipvt)	ipvt,
		integer(kind=4)	lipvt,
		real(kind=8), dimension(n)	rdiag,
		real(kind=8), dimension(n)	acnorm
	)

Definition at line 4744 of file suews_util_minpack.f95.

Referenced by hybrd(), hybrj(), lmder(), lmdif(), and lmstr().

!*****************************************************************************80
!
!! QRFAC computes a QR factorization using Householder transformations.
!
!  Discussion:
!
!    This subroutine uses Householder transformations with column
!    pivoting (optional) to compute a QR factorization of the
!    M by N matrix A.  That is, QRFAC determines an orthogonal
!    matrix Q, a permutation matrix P, and an upper trapezoidal
!    matrix R with diagonal elements of nonincreasing magnitude,
!    such that A*P = Q*R.  The Householder transformation for
!    column K, K = 1,2,...,min(M,N), is of the form
!
!      I - ( 1 / U(K) ) * U * U'
!
!    where U has zeros in the first K-1 positions.  The form of
!    this transformation and the method of pivoting first
!    appeared in the corresponding LINPACK subroutine.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) M, the number of rows of A.
!
!    Input, integer ( kind = 4 ) N, the number of columns of A.
!
!    Input/output, real ( kind = 8 ) A(LDA,N), the M by N array.
!    On input, A contains the matrix for which the QR factorization is to
!    be computed.  On output, the strict upper trapezoidal part of A contains
!    the strict upper trapezoidal part of R, and the lower trapezoidal
!    part of A contains a factored form of Q (the non-trivial elements of
!    the U vectors described above).
!
!    Input, integer ( kind = 4 ) LDA, the leading dimension of A, which must
!    be no less than M.
!
!    Input, logical PIVOT, is TRUE if column pivoting is to be carried out.
!
!    Output, integer ( kind = 4 ) IPVT(LIPVT), defines the permutation matrix P
!    such that A*P = Q*R.  Column J of P is column IPVT(J) of the identity
!    matrix.  If PIVOT is false, IPVT is not referenced.
!
!    Input, integer ( kind = 4 ) LIPVT, the dimension of IPVT, which should
!    be N if pivoting is used.
!
!    Output, real ( kind = 8 ) RDIAG(N), contains the diagonal elements of R.
!
!    Output, real ( kind = 8 ) ACNORM(N), the norms of the corresponding
!    columns of the input matrix A.  If this information is not needed,
!    then ACNORM can coincide with RDIAG.
!
   implicit none

   integer(kind=4) lda
   integer(kind=4) lipvt
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) a(lda, n)
   real(kind=8) acnorm(n)
   real(kind=8) ajnorm
   real(kind=8) enorm
   real(kind=8) epsmch
   ! integer ( kind = 4 ) i
   integer(kind=4) i4_temp
   integer(kind=4) ipvt(lipvt)
   integer(kind=4) j
   integer(kind=4) k
   integer(kind=4) kmax
   integer(kind=4) minmn
   logical pivot
   real(kind=8) r8_temp(m)
   real(kind=8) rdiag(n)
   real(kind=8) temp
   real(kind=8) wa(n)

   epsmch = epsilon(epsmch)
!
!  Compute the initial column norms and initialize several arrays.
!
   do j = 1, n
      acnorm(j) = enorm(m, a(1:m, j))
   end do

   rdiag(1:n) = acnorm(1:n)
   wa(1:n) = acnorm(1:n)

   if (pivot) then
      do j = 1, n
         ipvt(j) = j
      end do
   end if
!
!  Reduce A to R with Householder transformations.
!
   minmn = min(m, n)

   do j = 1, minmn
!
!  Bring the column of largest norm into the pivot position.
!
      if (pivot) then

         kmax = j

         do k = j, n
            if (rdiag(kmax) < rdiag(k)) then
               kmax = k
            end if
         end do

         if (kmax /= j) then

            r8_temp(1:m) = a(1:m, j)
            a(1:m, j) = a(1:m, kmax)
            a(1:m, kmax) = r8_temp(1:m)

            rdiag(kmax) = rdiag(j)
            wa(kmax) = wa(j)

            i4_temp = ipvt(j)
            ipvt(j) = ipvt(kmax)
            ipvt(kmax) = i4_temp

         end if

      end if
!
!  Compute the Householder transformation to reduce the
!  J-th column of A to a multiple of the J-th unit vector.
!
      ajnorm = enorm(m - j + 1, a(j, j))

      if (ajnorm /= 0.0d+00) then

         if (a(j, j) < 0.0d+00) then
            ajnorm = -ajnorm
         end if

         a(j:m, j) = a(j:m, j)/ajnorm
         a(j, j) = a(j, j) + 1.0d+00
!
!  Apply the transformation to the remaining columns and update the norms.
!
         do k = j + 1, n

            temp = dot_product(a(j:m, j), a(j:m, k))/a(j, j)

            a(j:m, k) = a(j:m, k) - temp*a(j:m, j)

            if (pivot .and. rdiag(k) /= 0.0d+00) then

               temp = a(j, k)/rdiag(k)
               rdiag(k) = rdiag(k)*sqrt(max(0.0d+00, 1.0d+00 - temp**2))

               if (0.05d+00*(rdiag(k)/wa(k))**2 <= epsmch) then
                  rdiag(k) = enorm(m - j, a(j + 1, k))
                  wa(k) = rdiag(k)
               end if

            end if

         end do

      end if

      rdiag(j) = -ajnorm

   end do

   return

Here is the caller graph for this function:

qrsolv()

subroutine qrsolv	(	integer(kind=4)	n,
		real(kind=8), dimension(ldr, n)	r,
		integer(kind=4)	ldr,
		integer(kind=4), dimension(n)	ipvt,
		real(kind=8), dimension(n)	diag,
		real(kind=8), dimension(n)	qtb,
		real(kind=8), dimension(n)	x,
		real(kind=8), dimension(n)	sdiag
	)

Definition at line 4938 of file suews_util_minpack.f95.

Referenced by lmpar().

!*****************************************************************************80
!
!! QRSOLV solves a rectangular linear system A*x=b in the least squares sense.
!
!  Discussion:
!
!    Given an M by N matrix A, an N by N diagonal matrix D,
!    and an M-vector B, the problem is to determine an X which
!    solves the system
!
!      A*X = B
!      D*X = 0
!
!    in the least squares sense.
!
!    This subroutine completes the solution of the problem
!    if it is provided with the necessary information from the
!    QR factorization, with column pivoting, of A.  That is, if
!    Q*P = Q*R, where P is a permutation matrix, Q has orthogonal
!    columns, and R is an upper triangular matrix with diagonal
!    elements of nonincreasing magnitude, then QRSOLV expects
!    the full upper triangle of R, the permutation matrix p,
!    and the first N components of Q'*B.
!
!    The system is then equivalent to
!
!      R*Z = Q'*B
!      P'*D*P*Z = 0
!
!    where X = P*Z.  If this system does not have full rank,
!    then a least squares solution is obtained.  On output QRSOLV
!    also provides an upper triangular matrix S such that
!
!      P'*(A'*A + D*D)*P = S'*S.
!
!    S is computed within QRSOLV and may be of separate interest.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) N, the order of R.
!
!    Input/output, real ( kind = 8 ) R(LDR,N), the N by N matrix.
!    On input the full upper triangle must contain the full upper triangle
!    of the matrix R.  On output the full upper triangle is unaltered, and
!    the strict lower triangle contains the strict upper triangle
!    (transposed) of the upper triangular matrix S.
!
!    Input, integer ( kind = 4 ) LDR, the leading dimension of R, which must be
!    at least N.
!
!    Input, integer ( kind = 4 ) IPVT(N), defines the permutation matrix P such
!    that A*P = Q*R.  Column J of P is column IPVT(J) of the identity matrix.
!
!    Input, real ( kind = 8 ) DIAG(N), the diagonal elements of the matrix D.
!
!    Input, real ( kind = 8 ) QTB(N), the first N elements of the vector Q'*B.
!
!    Output, real ( kind = 8 ) X(N), the least squares solution.
!
!    Output, real ( kind = 8 ) SDIAG(N), the diagonal elements of the upper
!    triangular matrix S.
!
   implicit none

   integer(kind=4) ldr
   integer(kind=4) n

   real(kind=8) c
   real(kind=8) cotan
   real(kind=8) diag(n)
   integer(kind=4) i
   integer(kind=4) ipvt(n)
   integer(kind=4) j
   integer(kind=4) k
   integer(kind=4) l
   integer(kind=4) nsing
   real(kind=8) qtb(n)
   real(kind=8) qtbpj
   real(kind=8) r(ldr, n)
   real(kind=8) s
   real(kind=8) sdiag(n)
   real(kind=8) sum2
   real(kind=8) t
   real(kind=8) temp
   real(kind=8) wa(n)
   real(kind=8) x(n)
!
!  Copy R and Q'*B to preserve input and initialize S.
!
!  In particular, save the diagonal elements of R in X.
!
   do j = 1, n
      r(j:n, j) = r(j, j:n)
      x(j) = r(j, j)
   end do

   wa(1:n) = qtb(1:n)
!
!  Eliminate the diagonal matrix D using a Givens rotation.
!
   do j = 1, n
!
!  Prepare the row of D to be eliminated, locating the
!  diagonal element using P from the QR factorization.
!
      l = ipvt(j)

      if (diag(l) /= 0.0d+00) then

         sdiag(j:n) = 0.0d+00
         sdiag(j) = diag(l)
!
!  The transformations to eliminate the row of D
!  modify only a single element of Q'*B
!  beyond the first N, which is initially zero.
!
         qtbpj = 0.0d+00

         do k = j, n
!
!  Determine a Givens rotation which eliminates the
!  appropriate element in the current row of D.
!
            if (sdiag(k) /= 0.0d+00) then

               if (abs(r(k, k)) < abs(sdiag(k))) then
                  cotan = r(k, k)/sdiag(k)
                  s = 0.5d+00/sqrt(0.25d+00 + 0.25d+00*cotan**2)
                  c = s*cotan
               else
                  t = sdiag(k)/r(k, k)
                  c = 0.5d+00/sqrt(0.25d+00 + 0.25d+00*t**2)
                  s = c*t
               end if
!
!  Compute the modified diagonal element of R and
!  the modified element of (Q'*B,0).
!
               r(k, k) = c*r(k, k) + s*sdiag(k)
               temp = c*wa(k) + s*qtbpj
               qtbpj = -s*wa(k) + c*qtbpj
               wa(k) = temp
!
!  Accumulate the tranformation in the row of S.
!
               do i = k + 1, n
                  temp = c*r(i, k) + s*sdiag(i)
                  sdiag(i) = -s*r(i, k) + c*sdiag(i)
                  r(i, k) = temp
               end do

            end if

         end do

      end if
!
!  Store the diagonal element of S and restore
!  the corresponding diagonal element of R.
!
      sdiag(j) = r(j, j)
      r(j, j) = x(j)

   end do
!
!  Solve the triangular system for Z.  If the system is
!  singular, then obtain a least squares solution.
!
   nsing = n

   do j = 1, n

      if (sdiag(j) == 0.0d+00 .and. nsing == n) then
         nsing = j - 1
      end if

      if (nsing < n) then
         wa(j) = 0.0d+00
      end if

   end do

   do j = nsing, 1, -1
      sum2 = dot_product(wa(j + 1:nsing), r(j + 1:nsing, j))
      wa(j) = (wa(j) - sum2)/sdiag(j)
   end do
!
!  Permute the components of Z back to components of X.
!
   do j = 1, n
      l = ipvt(j)
      x(l) = wa(j)
   end do

   return

Here is the caller graph for this function:

r1mpyq()

subroutine r1mpyq	(	integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(lda, n)	a,
		integer(kind=4)	lda,
		real(kind=8), dimension(n)	v,
		real(kind=8), dimension(n)	w
	)

Definition at line 5156 of file suews_util_minpack.f95.

Referenced by hybrd(), and hybrj().

!*****************************************************************************80
!
!! R1MPYQ computes A*Q, where Q is the product of Householder transformations.
!
!  Discussion:
!
!    Given an M by N matrix A, this subroutine computes A*Q where
!    Q is the product of 2*(N - 1) transformations
!
!      GV(N-1)*...*GV(1)*GW(1)*...*GW(N-1)
!
!    and GV(I), GW(I) are Givens rotations in the (I,N) plane which
!    eliminate elements in the I-th and N-th planes, respectively.
!    Q itself is not given, rather the information to recover the
!    GV, GW rotations is supplied.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) M, the number of rows of A.
!
!    Input, integer ( kind = 4 ) N, the number of columns of A.
!
!    Input/output, real ( kind = 8 ) A(LDA,N), the M by N array.
!    On input, the matrix A to be postmultiplied by the orthogonal matrix Q.
!    On output, the value of A*Q.
!
!    Input, integer ( kind = 4 ) LDA, the leading dimension of A, which must not
!    be less than M.
!
!    Input, real ( kind = 8 ) V(N), W(N), contain the information necessary
!    to recover the Givens rotations GV and GW.
!
   implicit none

   integer(kind=4) lda
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) a(lda, n)
   real(kind=8) c
   integer(kind=4) i
   integer(kind=4) j
   real(kind=8) s
   real(kind=8) temp
   real(kind=8) v(n)
   real(kind=8) w(n)
!
!  Apply the first set of Givens rotations to A.
!
   do j = n - 1, 1, -1

      if (1.0d+00 < abs(v(j))) then
         c = 1.0d+00/v(j)
         s = sqrt(1.0d+00 - c**2)
      else
         s = v(j)
         c = sqrt(1.0d+00 - s**2)
      end if

      do i = 1, m
         temp = c*a(i, j) - s*a(i, n)
         a(i, n) = s*a(i, j) + c*a(i, n)
         a(i, j) = temp
      end do

   end do
!
!  Apply the second set of Givens rotations to A.
!
   do j = 1, n - 1

      if (abs(w(j)) > 1.0d+00) then
         c = 1.0d+00/w(j)
         s = sqrt(1.0d+00 - c**2)
      else
         s = w(j)
         c = sqrt(1.0d+00 - s**2)
      end if

      do i = 1, m
         temp = c*a(i, j) + s*a(i, n)
         a(i, n) = -s*a(i, j) + c*a(i, n)
         a(i, j) = temp
      end do

   end do

   return

Here is the caller graph for this function:

r1updt()

subroutine r1updt	(	integer(kind=4)	m,
		integer(kind=4)	n,
		real(kind=8), dimension(ls)	s,
		integer(kind=4)	ls,
		real(kind=8), dimension(m)	u,
		real(kind=8), dimension(n)	v,
		real(kind=8), dimension(m)	w,
		logical	sing
	)

Definition at line 5267 of file suews_util_minpack.f95.

Referenced by hybrd(), and hybrj().

!*****************************************************************************80
!
!! R1UPDT re-triangularizes a matrix after a rank one update.
!
!  Discussion:
!
!    Given an M by N lower trapezoidal matrix S, an M-vector U, and an
!    N-vector V, the problem is to determine an orthogonal matrix Q such that
!
!      (S + U * V' ) * Q
!
!    is again lower trapezoidal.
!
!    This subroutine determines Q as the product of 2 * (N - 1)
!    transformations
!
!      GV(N-1)*...*GV(1)*GW(1)*...*GW(N-1)
!
!    where GV(I), GW(I) are Givens rotations in the (I,N) plane
!    which eliminate elements in the I-th and N-th planes,
!    respectively.  Q itself is not accumulated, rather the
!    information to recover the GV and GW rotations is returned.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) M, the number of rows of S.
!
!    Input, integer ( kind = 4 ) N, the number of columns of S.
!    N must not exceed M.
!
!    Input/output, real ( kind = 8 ) S(LS).  On input, the lower trapezoidal
!    matrix S stored by columns.  On output S contains the lower trapezoidal
!    matrix produced as described above.
!
!    Input, integer ( kind = 4 ) LS, the length of the S array.  LS must be at
!    least (N*(2*M-N+1))/2.
!
!    Input, real ( kind = 8 ) U(M), the U vector.
!
!    Input/output, real ( kind = 8 ) V(N).  On input, V must contain the
!    vector V.  On output V contains the information necessary to recover the
!    Givens rotations GV described above.
!
!    Output, real ( kind = 8 ) W(M), contains information necessary to
!    recover the Givens rotations GW described above.
!
!    Output, logical SING, is set to TRUE if any of the diagonal elements
!    of the output S are zero.  Otherwise SING is set FALSE.
!
   implicit none

   integer(kind=4) ls
   integer(kind=4) m
   integer(kind=4) n

   real(kind=8) cos
   real(kind=8) cotan
   real(kind=8) giant
   integer(kind=4) i
   integer(kind=4) j
   integer(kind=4) jj
   integer(kind=4) l
   real(kind=8) s(ls)
   real(kind=8) sin
   logical sing
   real(kind=8) tan
   real(kind=8) tau
   real(kind=8) temp
   real(kind=8) u(m)
   real(kind=8) v(n)
   real(kind=8) w(m)
!
!  GIANT is the largest magnitude.
!
   giant = huge(giant)
!
!  Initialize the diagonal element pointer.
!
   jj = (n*(2*m - n + 1))/2 - (m - n)
!
!  Move the nontrivial part of the last column of S into W.
!
   l = jj
   do i = n, m
      w(i) = s(l)
      l = l + 1
   end do
!
!  Rotate the vector V into a multiple of the N-th unit vector
!  in such a way that a spike is introduced into W.
!
   do j = n - 1, 1, -1

      jj = jj - (m - j + 1)
      w(j) = 0.0d+00

      if (v(j) /= 0.0d+00) then
!
!  Determine a Givens rotation which eliminates the
!  J-th element of V.
!
         if (abs(v(n)) < abs(v(j))) then
            cotan = v(n)/v(j)
            sin = 0.5d+00/sqrt(0.25d+00 + 0.25d+00*cotan**2)
            cos = sin*cotan
            tau = 1.0d+00
            if (abs(cos)*giant > 1.0d+00) then
               tau = 1.0d+00/cos
            end if
         else
            tan = v(j)/v(n)
            cos = 0.5d+00/sqrt(0.25d+00 + 0.25d+00*tan**2)
            sin = cos*tan
            tau = sin
         end if
!
!  Apply the transformation to V and store the information
!  necessary to recover the Givens rotation.
!
         v(n) = sin*v(j) + cos*v(n)
         v(j) = tau
!
!  Apply the transformation to S and extend the spike in W.
!
         l = jj
         do i = j, m
            temp = cos*s(l) - sin*w(i)
            w(i) = sin*s(l) + cos*w(i)
            s(l) = temp
            l = l + 1
         end do

      end if

   end do
!
!  Add the spike from the rank 1 update to W.
!
   w(1:m) = w(1:m) + v(n)*u(1:m)
!
!  Eliminate the spike.
!
   sing = .false.

   do j = 1, n - 1

      if (w(j) /= 0.0d+00) then
!
!  Determine a Givens rotation which eliminates the
!  J-th element of the spike.
!
         if (abs(s(jj)) < abs(w(j))) then

            cotan = s(jj)/w(j)
            sin = 0.5d+00/sqrt(0.25d+00 + 0.25d+00*cotan**2)
            cos = sin*cotan

            if (1.0d+00 < abs(cos)*giant) then
               tau = 1.0d+00/cos
            else
               tau = 1.0d+00
            end if

         else

            tan = w(j)/s(jj)
            cos = 0.5d+00/sqrt(0.25d+00 + 0.25d+00*tan**2)
            sin = cos*tan
            tau = sin

         end if
!
!  Apply the transformation to S and reduce the spike in W.
!
         l = jj
         do i = j, m
            temp = cos*s(l) + sin*w(i)
            w(i) = -sin*s(l) + cos*w(i)
            s(l) = temp
            l = l + 1
         end do
!
!  Store the information necessary to recover the Givens rotation.
!
         w(j) = tau

      end if
!
!  Test for zero diagonal elements in the output S.
!
      if (s(jj) == 0.0d+00) then
         sing = .true.
      end if

      jj = jj + (m - j + 1)

   end do
!
!  Move W back into the last column of the output S.
!
   l = jj
   do i = n, m
      s(l) = w(i)
      l = l + 1
   end do

   if (s(jj) == 0.0d+00) then
      sing = .true.
   end if

   return

Here is the caller graph for this function:

r8vec_print()

subroutine r8vec_print	(	integer(kind=4)	n,
		real(kind=8), dimension(n)	a,
		character(len=*)	title
	)

Definition at line 5501 of file suews_util_minpack.f95.

Referenced by anohm_module::anohm_fccal(), and anohm_module::fcnbo().

!*****************************************************************************80
!
!! R8VEC_PRINT prints an R8VEC.
!
!  Discussion:
!
!    An R8VEC is a vector of R8's.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    22 August 2000
!
!  Author:
!
!    John Burkardt
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) N, the number of components of the vector.
!
!    Input, real ( kind = 8 ) A(N), the vector to be printed.
!
!    Input, character ( len = * ) TITLE, a title.
!
   implicit none

   integer(kind=4) n

   real(kind=8) a(n)
   integer(kind=4) i
   character(len=*) title

   write (*, '(a)') ' '
   write (*, '(a)') trim(title)
   write (*, '(a)') ' '
   do i = 1, n
      write (*, '(2x,i8,2x,g16.8)') i, a(i)
   end do

   return

Here is the caller graph for this function:

rwupdt()

subroutine rwupdt	(	integer(kind=4)	n,
		real(kind=8), dimension(ldr, n)	r,
		integer(kind=4)	ldr,
		real(kind=8), dimension(n)	w,
		real(kind=8), dimension(n)	b,
		real(kind=8)	alpha,
		real(kind=8), dimension(n)	c,
		real(kind=8), dimension(n)	s
	)

Definition at line 5548 of file suews_util_minpack.f95.

Referenced by lmstr().

!*****************************************************************************80
!
!! RWUPDT computes the decomposition of triangular matrix augmented by one row.
!
!  Discussion:
!
!    Given an N by N upper triangular matrix R, this subroutine
!    computes the QR decomposition of the matrix formed when a row
!    is added to R.  If the row is specified by the vector W, then
!    RWUPDT determines an orthogonal matrix Q such that when the
!    N+1 by N matrix composed of R augmented by W is premultiplied
!    by Q', the resulting matrix is upper trapezoidal.
!    The matrix Q' is the product of N transformations
!
!      G(N)*G(N-1)* ... *G(1)
!
!    where G(I) is a Givens rotation in the (I,N+1) plane which eliminates
!    elements in the (N+1)-st plane.  RWUPDT also computes the product
!    Q'*C where C is the (N+1)-vector (B,ALPHA).  Q itself is not
!    accumulated, rather the information to recover the G rotations is
!    supplied.
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    06 April 2010
!
!  Author:
!
!    Original FORTRAN77 version by Jorge More, Burton Garbow, Kenneth Hillstrom.
!    FORTRAN90 version by John Burkardt.
!
!  Reference:
!
!    Jorge More, Burton Garbow, Kenneth Hillstrom,
!    User Guide for MINPACK-1,
!    Technical Report ANL-80-74,
!    Argonne National Laboratory, 1980.
!
!  Parameters:
!
!    Input, integer ( kind = 4 ) N, the order of R.
!
!    Input/output, real ( kind = 8 ) R(LDR,N).  On input the upper triangular
!    part of R must contain the matrix to be updated.  On output R contains the
!    updated triangular matrix.
!
!    Input, integer ( kind = 4 ) LDR, the leading dimension of the array R.
!    LDR must not be less than N.
!
!    Input, real ( kind = 8 ) W(N), the row vector to be added to R.
!
!    Input/output, real ( kind = 8 ) B(N).  On input, the first N elements
!    of the vector C.  On output the first N elements of the vector Q'*C.
!
!    Input/output, real ( kind = 8 ) ALPHA.  On input, the (N+1)-st element
!    of the vector C.  On output the (N+1)-st element of the vector Q'*C.
!
!    Output, real ( kind = 8 ) C(N), S(N), the cosines and sines of the
!    transforming Givens rotations.
!
   implicit none

   integer(kind=4) ldr
   integer(kind=4) n

   real(kind=8) alpha
   real(kind=8) b(n)
   real(kind=8) c(n)
   real(kind=8) cotan
   integer(kind=4) i
   integer(kind=4) j
   real(kind=8) r(ldr, n)
   real(kind=8) rowj
   real(kind=8) s(n)
   real(kind=8) tan
   real(kind=8) temp
   real(kind=8) w(n)

   do j = 1, n

      rowj = w(j)
!
!  Apply the previous transformations to R(I,J), I=1,2,...,J-1, and to W(J).
!
      do i = 1, j - 1
         temp = c(i)*r(i, j) + s(i)*rowj
         rowj = -s(i)*r(i, j) + c(i)*rowj
         r(i, j) = temp
      end do
!
!  Determine a Givens rotation which eliminates W(J).
!
      c(j) = 1.0d+00
      s(j) = 0.0d+00

      if (rowj /= 0.0d+00) then

         if (abs(r(j, j)) < abs(rowj)) then
            cotan = r(j, j)/rowj
            s(j) = 0.5d+00/sqrt(0.25d+00 + 0.25d+00*cotan**2)
            c(j) = s(j)*cotan
         else
            tan = rowj/r(j, j)
            c(j) = 0.5d+00/sqrt(0.25d+00 + 0.25d+00*tan**2)
            s(j) = c(j)*tan
         end if
!
!  Apply the current transformation to R(J,J), B(J), and ALPHA.
!
         r(j, j) = c(j)*r(j, j) + s(j)*rowj
         temp = c(j)*b(j) + s(j)*alpha
         alpha = -s(j)*b(j) + c(j)*alpha
         b(j) = temp

      end if

   end do

   return

Here is the caller graph for this function:

timestamp()

subroutine timestamp

(

)

Definition at line 5674 of file suews_util_minpack.f95.

!*****************************************************************************80
!
!! TIMESTAMP prints the current YMDHMS date as a time stamp.
!
!  Example:
!
!    31 May 2001   9:45:54.872 AM
!
!  Licensing:
!
!    This code is distributed under the GNU LGPL license.
!
!  Modified:
!
!    18 May 2013
!
!  Author:
!
!    John Burkardt
!
!  Parameters:
!
!    None
!
   implicit none

   character(len=8) ampm
   integer(kind=4) d
   integer(kind=4) h
   integer(kind=4) m
   integer(kind=4) mm
   character(len=9), parameter, dimension(12) :: month = (/ &
                                                 'January  ', 'February ', 'March    ', 'April    ', &
                                                 'May      ', 'June     ', 'July     ', 'August   ', &
                                                 'September', 'October  ', 'November ', 'December '/)
   integer(kind=4) n
   integer(kind=4) s
   integer(kind=4) values(8)
   integer(kind=4) y

   call date_and_time(values=values)

   y = values(1)
   m = values(2)
   d = values(3)
   h = values(5)
   n = values(6)
   s = values(7)
   mm = values(8)

   if (h < 12) then
      ampm = 'AM'
   else if (h == 12) then
      if (n == 0 .and. s == 0) then
         ampm = 'Noon'
      else
         ampm = 'PM'
      end if
   else
      h = h - 12
      if (h < 12) then
         ampm = 'PM'
      else if (h == 12) then
         if (n == 0 .and. s == 0) then
            ampm = 'Midnight'
         else
            ampm = 'AM'
         end if
      end if
   end if

   write (*, '(i2.2,1x,a,1x,i4,2x,i2,a1,i2.2,a1,i2.2,a1,i3.3,1x,a)') &
      d, trim(month(m)), y, h, ':', n, ':', s, '.', mm, trim(ampm)

   return
