heatflux Module Reference

Functions/Subroutines
subroutine	heatcond1d (T, Qs, dx, dt, k, rhocp, bc, bctype)

Function/Subroutine Documentation

heatcond1d()

subroutine heatflux::heatcond1d	(	real(kind(1d0)), dimension(:), intent(inout)	T,
		real(kind(1d0)), intent(out)	Qs,
		real(kind(1d0)), dimension(:), intent(in)	dx,
		real(kind(1d0)), intent(in)	dt,
		real(kind(1d0)), dimension(:), intent(in)	k,
		real(kind(1d0)), dimension(:), intent(in)	rhocp,
		real(kind(1d0)), dimension(2), intent(in)	bc,
		logical, dimension(2), intent(in)	bctype
	)

Definition at line 481 of file suews_phys_estm.f95.

Referenced by estm_module::estm().

      REAL(KIND(1d0)), INTENT(inout)::t(:)
      REAL(KIND(1d0)), INTENT(in)::dx(:), dt, k(:), rhocp(:), bc(2)
      REAL(KIND(1d0)), INTENT(out)::qs
      LOGICAL, INTENT(in)::bctype(2)
      INTEGER         ::i, n!,j       !!!!!FO!!!!!
      REAL(KIND(1d0)), ALLOCATABLE::w(:), a(:), t1(:)
      n = SIZE(t)
      ALLOCATE (w(0:n), a(n), t1(n))
      !w = interface tempea
      w(1:n) = t
      w(0) = bc(1); w(n) = bc(2)
      !convert from flux to equivalent temperature, not exact
      ! F = k dT/dX => dx*F/k + Ti = Ti
      IF (bctype(1)) w(0) = bc(1)*0.5*dx(1)/k(1) + w(1)
      IF (bctype(2)) w(n) = bc(2)*0.5*dx(n)/k(n) + w(n)

      a = k/dx
      DO i = 1, n - 1
         w(i) = (t(i + 1)*a(i + 1) + t(i)*a(i))/(a(i) + a(i + 1))
      ENDDO
      !!FO!! print*, 'w: ', w
      DO i = 1, n
         t1(i) = (dt/rhocp(i))*(w(i - 1) - 2*t(i) + w(i))*2*a(i)/dx(i) + t(i)
      ENDDO
      !!FO!! print*, 'T1: ', T1
      !for storage the internal distribution of heat should not be important
      qs = (w(0) - t(1))*2*a(1) + (w(n) - t(n))*2*a(n)                           !!FO!! k*d(dT/dx)/dx = rhoCp*(dT/dt) -- rhoCp*(dT/dt)*dx = dQs -- dQs = k*d(dT/dx)
      ! Qs=sum((T1-T)*rhocp*dx)/dt!
      t = t1

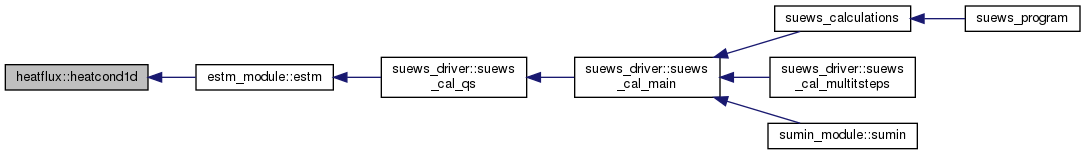

Here is the caller graph for this function:
